FAGOR WAF Series Distribution Amplifier: WAF-311 TV+SAT, Single Input, R/Path, Gain 40dB, Adj 0/20dB, Max Out 120dBµV

fagor multimedia perspectives logo

$349.80 Inc. GST

SKU: WAF-311 Category: Brand:
Description

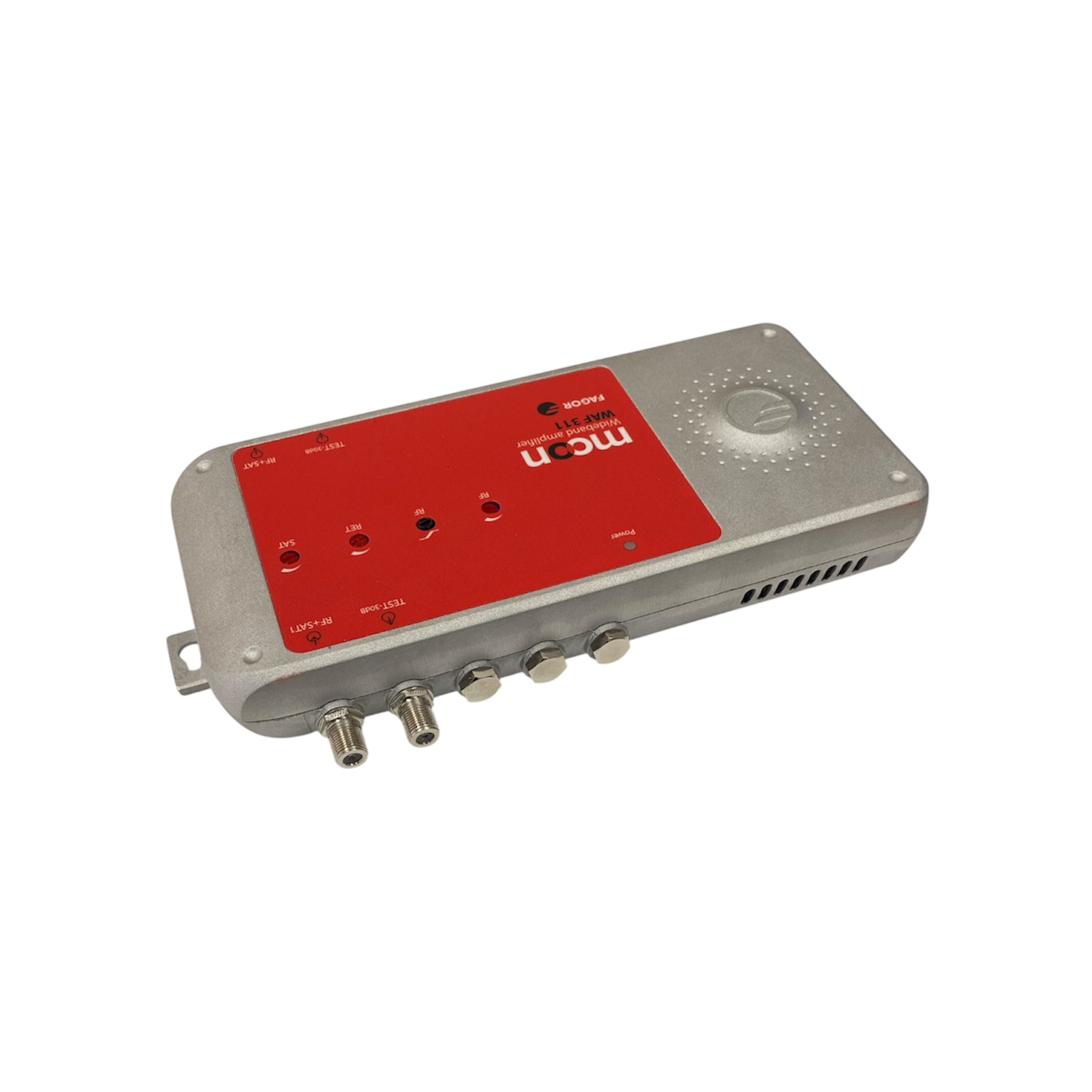

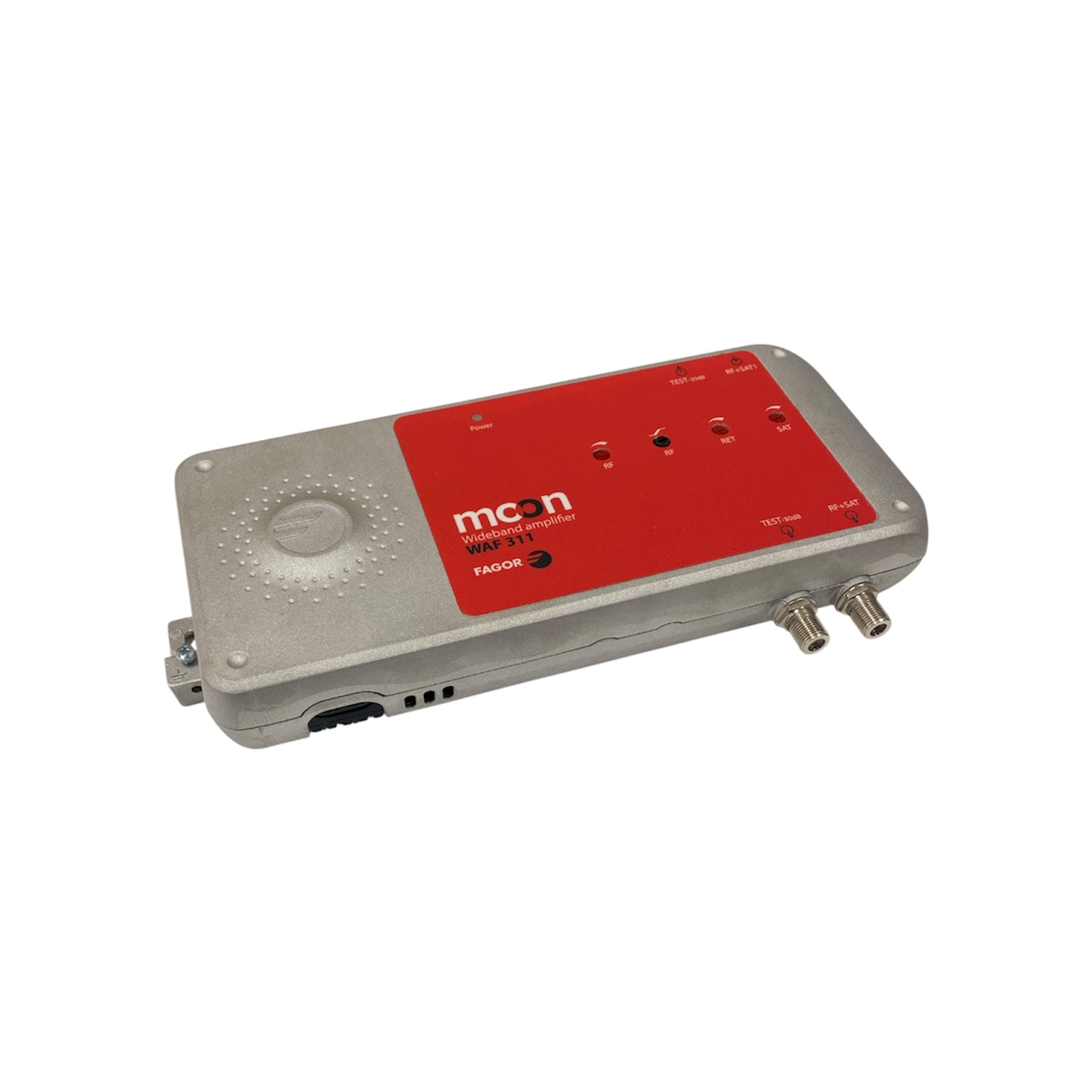

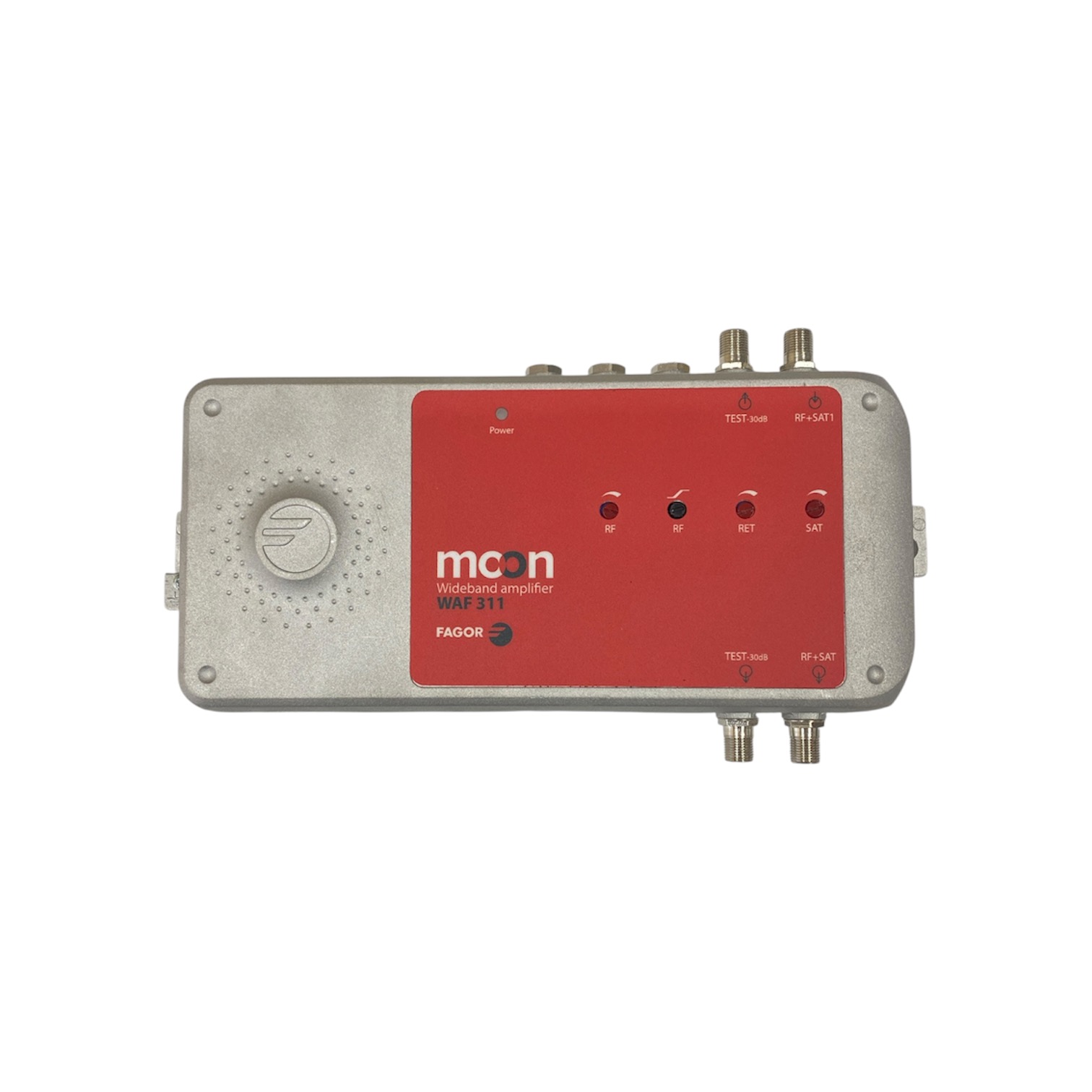

FAGOR WAF-311 TV + SAT Single Input / Output Distribution Amplifier

High power and high performance broadband amplifier ideal for the distribution of terrestrial and satellite television signals.

APPLICATION

Ideal for the amplification of all TV channels in community installation.

FEATURES

  • High power output – 120dB
  • Gain 40dB
  • Aluminium metal body with reduced dimensions for high gain and high power output level.
  • High linearity, power and gains, in a light and compact format.
  • Output slope equalization.
  • Integrated power supply
  • Allows the passage of the return path in extended band and has slope control for the direct path.
  • Requires Figure 8 Power Lead – Not included



Weight 0.4 kg
Dimensions 29 × 17 × 7 cm

Available downloads for this item:

Click to view - FAGOR WAF-311 Datasheet
