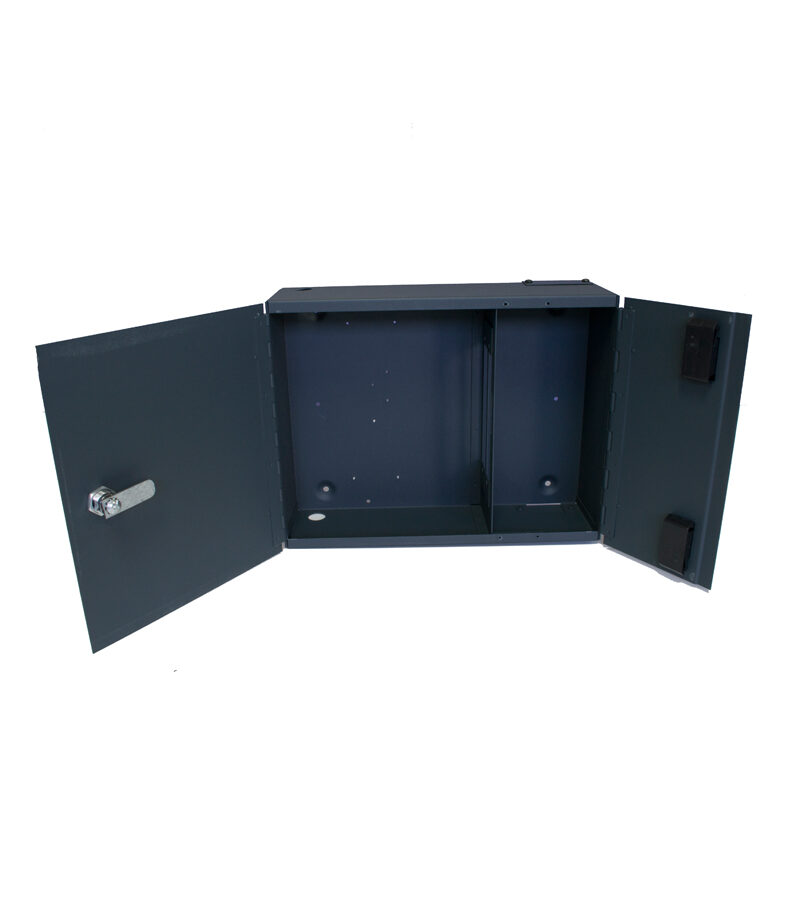

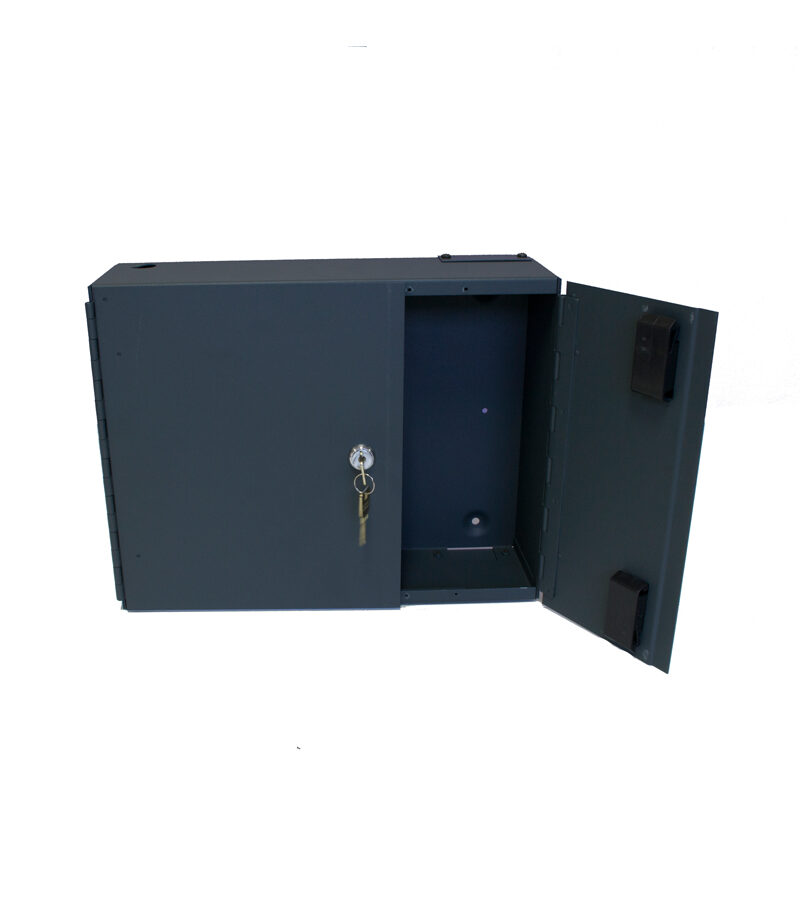

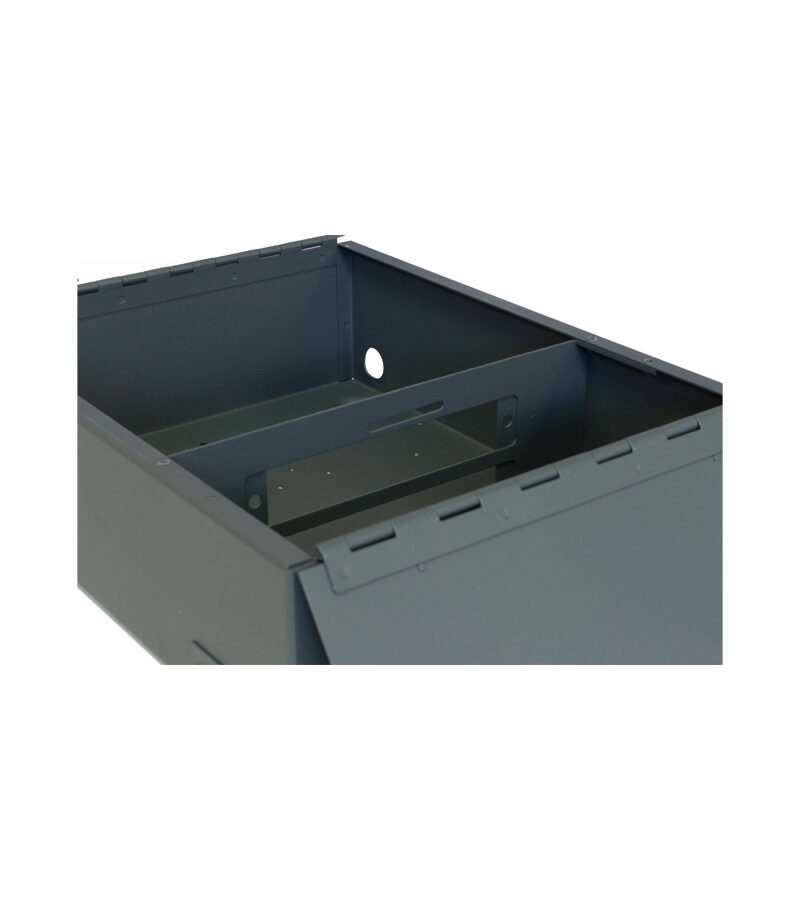

FOBOT Hinged Wall Mount Enclosures – Optical Termination (24-Simplex / 48-Duplex)

FOBOT Hinged Wall Mount Enclosures – Optical Termination

Hinged wall Mount enclosures offer the installer a robust, heavy duty premium product with a variety of features for easy direct termination or fusion splicing. M20 gland holes for cable entry, cable management clips and fusion splice tray mounts are provided. Also features lockable door to secure cable point of entry compartment. The modular design provides the flexibility to choose from a variety of thru-adaptor types including ST, SC duplex, FC, LC and MTRJ.

Features

• Heavy duty hinge mechanism
• Tough and durable steel design Size 260 x 333 x 100mm (HxWxD)
• 2x panel capacity
• Supports a wide range of splice cassettes
• Accommodates up to 24 Simplex or 48 Duplex fibres
• Access via lockable doors
• Modular coupler panels to suit your connector type
• Comes with M20 gland, strength clamp and cable management clips

per Panel Option / Cores

• SC-Simplex (6 Port 6 Fibre) or  (12 Port 12 Fibre)
• SC-Duplex (6 Port 12 Fibre)
• LC-Duplex (12 Port 24 Fibre)
