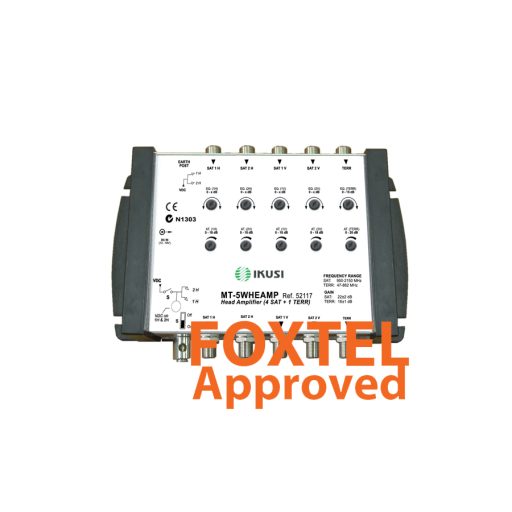

IKUSI MT-5WHEAMP 5-Wire Distribution 4x SAT / 1x TER Headend / Repeater Amplifier

52117: MT-5WHEAMP: SMATV 5 Wire Head Amplifier, Foxtel/Austar App.

IKUSI 5-Wire 4xSAT / 1x TER Distribution Amplifiers – FOXTEL Approved

• Low cost high performance, proven technology for SMATV distribution
• Amplification of 4 SAT-IF & 1 TERR signal for 5 wire distribution systems.
• Active SAT & TERR. Continuous attenuation & equalization adjustments.
• Local powering ( 18 VDC) using PS1816DC.
• The 18VDC voltage is connected directly to SAT 1H and SAT 2H inputs and can be switched to SAT 1H & SAT 2H outputs (LED indicator).
• 13VDC can be switched to SAT 1V & SAT 2V inputs to power vertical polarity of the LNB (LED indicator).
• Sheet metal housing. Indoor mounting. Wall fixing. Earthing terminal.
• FOXTEL Approved

MT-5WHEAMP

compatible with HI-5WAMP
