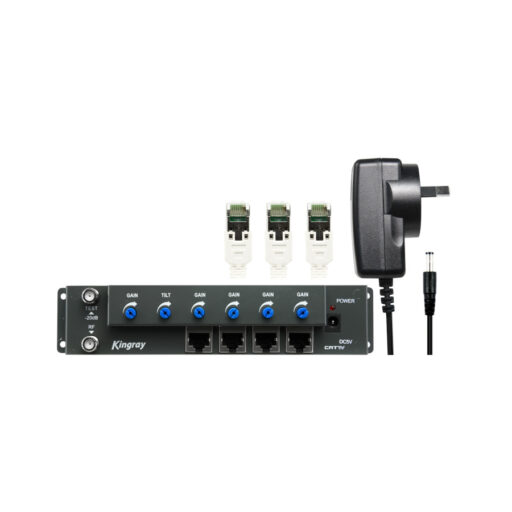

Kingray CAT01 CATTV Headend Amplifier, IN RF 47-750MHz to 4 x 8P8C (RJ45) DATA Outlets Inc.PSU
$399.30 Inc. GST
Kingray CATTV Headend Amplified Splitter Unit with 4 x 8P8C DATA Outlets, Inc. master gain and tilt controls and individual gain for each outlet
Key Features
- Frequency Range 47-750 MHz
- 95dB Maximum Output Level
- 63dB Minimum Input Level
- 20dB Maximum Input Gain Control
- 20dB Maximum Output Gain Control
- 0-15dB Tilt Control
- -20dB Test Point
- Individual Gain Control for Each Output
- Connectors: F-Type
- Power Consumption: 800mA
- Operating Voltage: 5V 2A DC
In the box
- CAT01
- PSK5S
- CAT01 Instruction Manual
- Terminators x 3
| Weight | .6 kg |
|---|---|
| Dimensions | 24 × 18 × 8 cm |
Available downloads for this item:
Click to view - CAT01_TechSheet
