Kingray MDA 15 Series Masthead Distribution Amplifier with 15dB Gain & 4G/LTE filtering

Kingray Logo

$60.50

SKU: MDA15xx Category: Tag: Brand:
Description

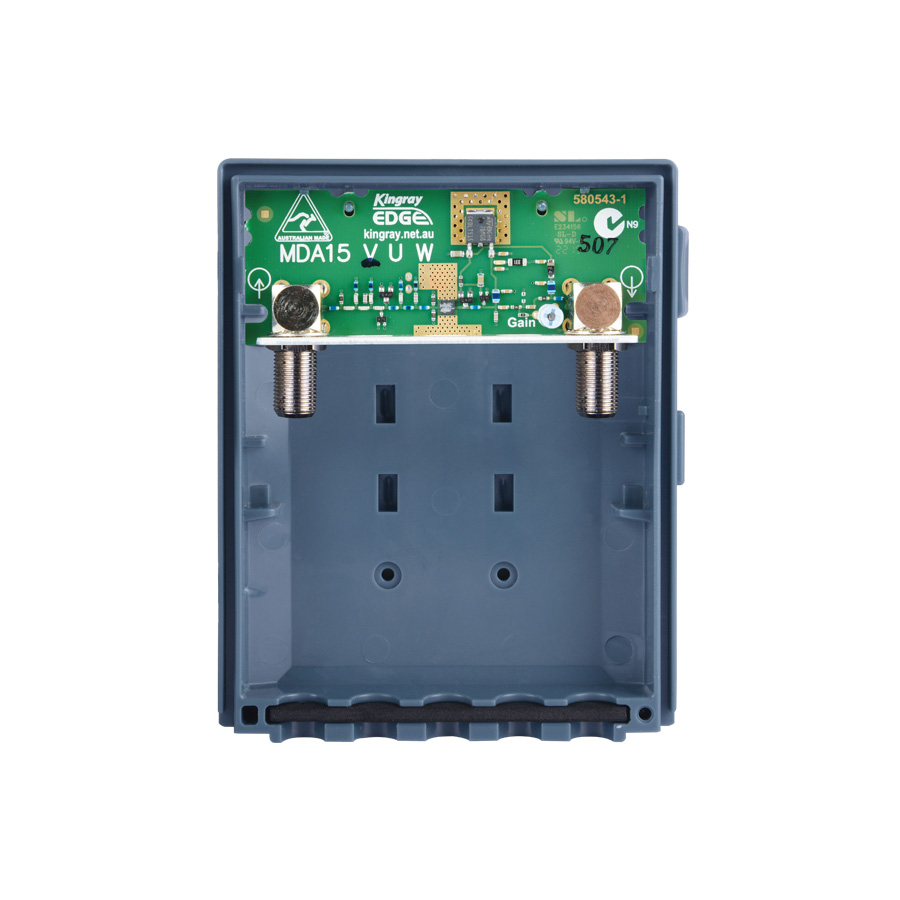

Kingray MDA Series MDA15U, MDA15V & MDA15W Masthead Distribution Amplifier with 15/20dB Gain & 4G/LTE filtering

  • MDA15U
    Frequency Range 470-694 MHz
    Max Gain 15dB UHF
    6dB Gain Control for UHF
    4G/LTE Filtering
  • MDA15V
    Frequency Range 174-230 MHz
    Max Gain 15dB VHF
    10dB Gain Control for UHF
  • MDA15W
    Frequency Range 174-694 MHz
    Max Gain 15dB
    Gain Control 10dB UHF / 6dB VHF
    4G/LTE Filtering
  • Low Noise Figure <2.5dB
  • High Output Figure of 113dB IMR3 (DIN45004B)
  • Weatherproof Housing
  • Connectors: F-Type
  • Power Consumption: 60mA
  • Suitable Power Supply: PSK06 Series



Weight .6 kg
Dimensions 12 × 14 × 5 cm
Band

UHF Only, VHF Only, VHF/UHF (Wide band)

Available downloads for this item:

Click to view - Product DATA Sheet - Standard 5-Wire Amplifier
