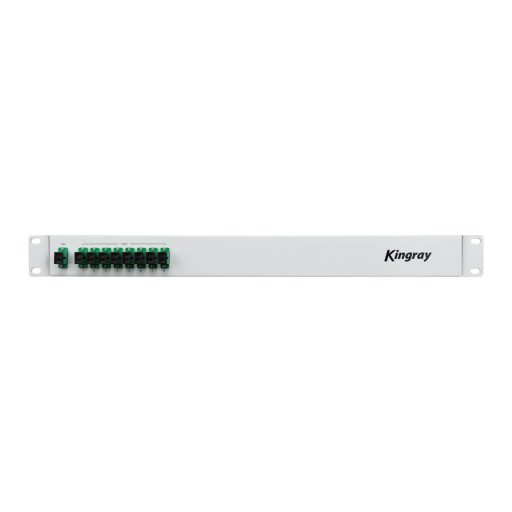

Kingray Optical Splitter KPLC104, 108, 116 & 132 Way PLC Splitter – 19″ 1RU Mount

Kingray KLPC104, KPLC108, KPLC116 & KPLC132 Way Planar Optical Waveguide Optical Splitter (PLC Splitter) is an integration waveguide optical power distribution device that is based on quartz substrate, has a wide working wavelength range, high reliability and excellent uniformity of optical split. It is especially suitable for connecting a local unit with a terminal unit in passive optical networks (EPON, BPON, GPON, etc.) to achieve optical signal splitting.

Features

• 1 in 4 Out Optical Splitter Maximum Insertion Loss: 7.4dB
• 1 in 8 Out Optical Splitter Maximum Insertion Loss: 10.7dB
• 1 in 16 Out Optical Splitter Maximum Insertion Loss: 13.9dB
• 1 in 32 Out Optical Splitter Maximum Insertion Loss: 17.2dB
• Optical Wavelength: 1260nm~1650nm
• Return Loss >55dB
• Low insertion loss, high uniformity
• Low polarization loss
• Wide working wavelength range
• High stability and reliability
• Size: 1RU, 19″ Rack Mountable
• Connections: SC/APC
