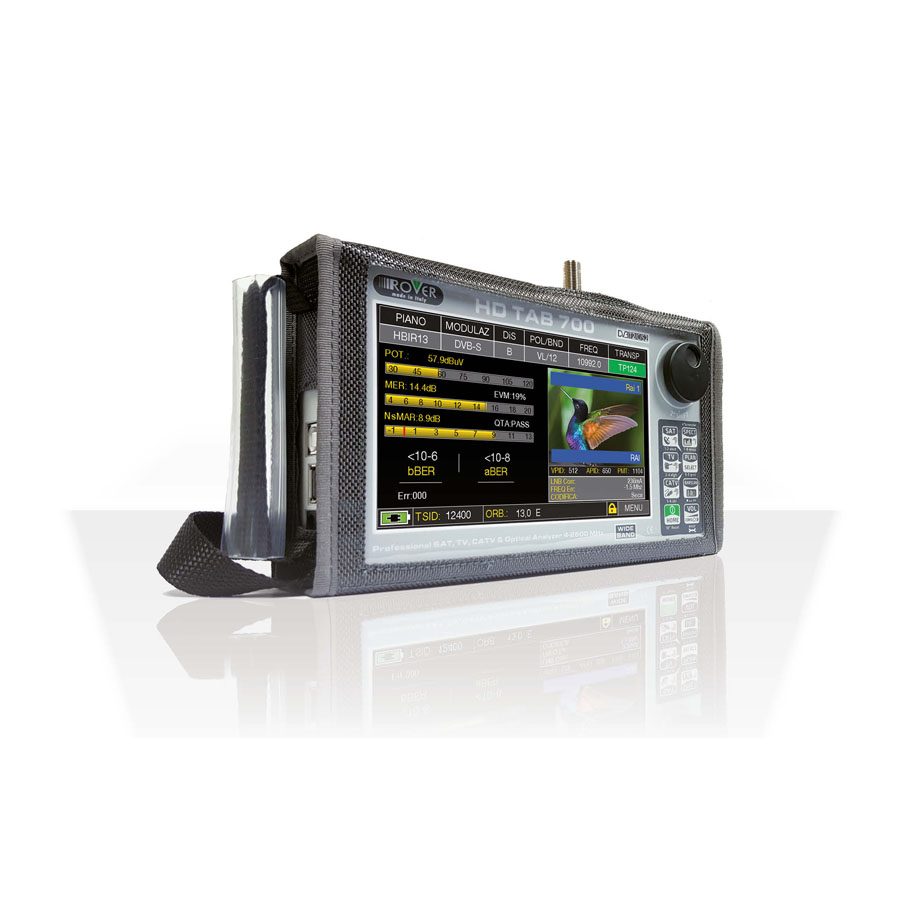

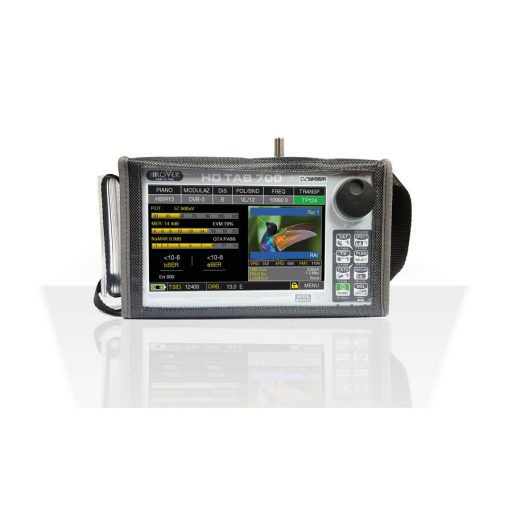

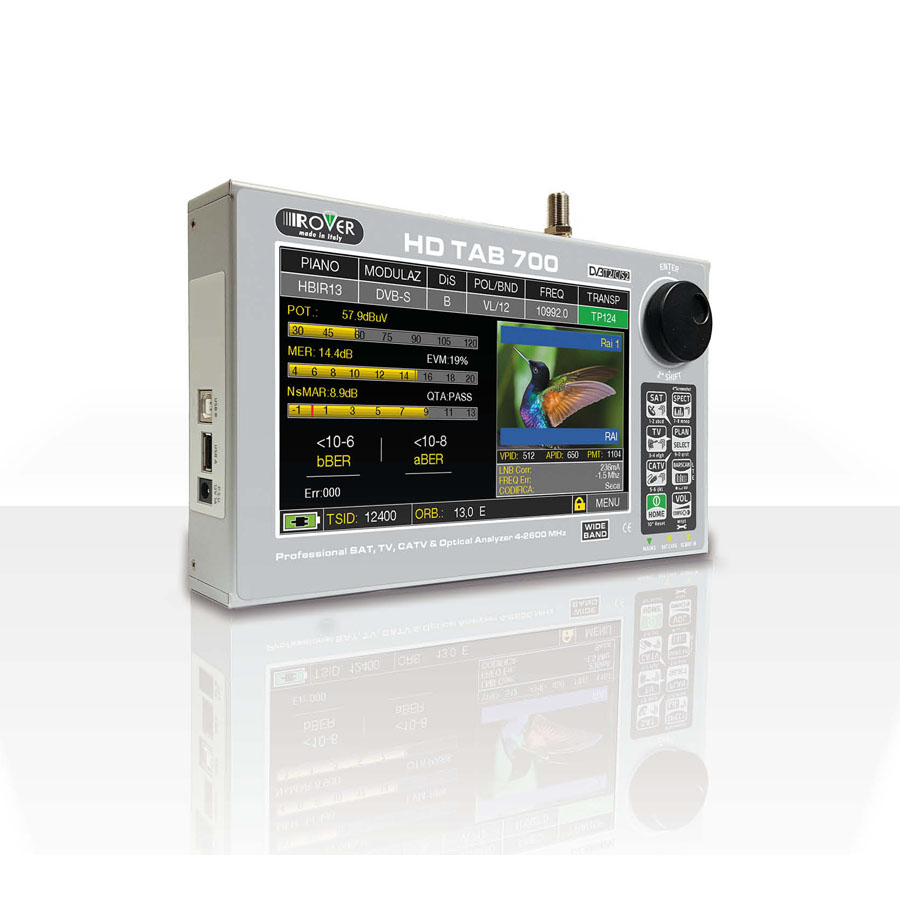

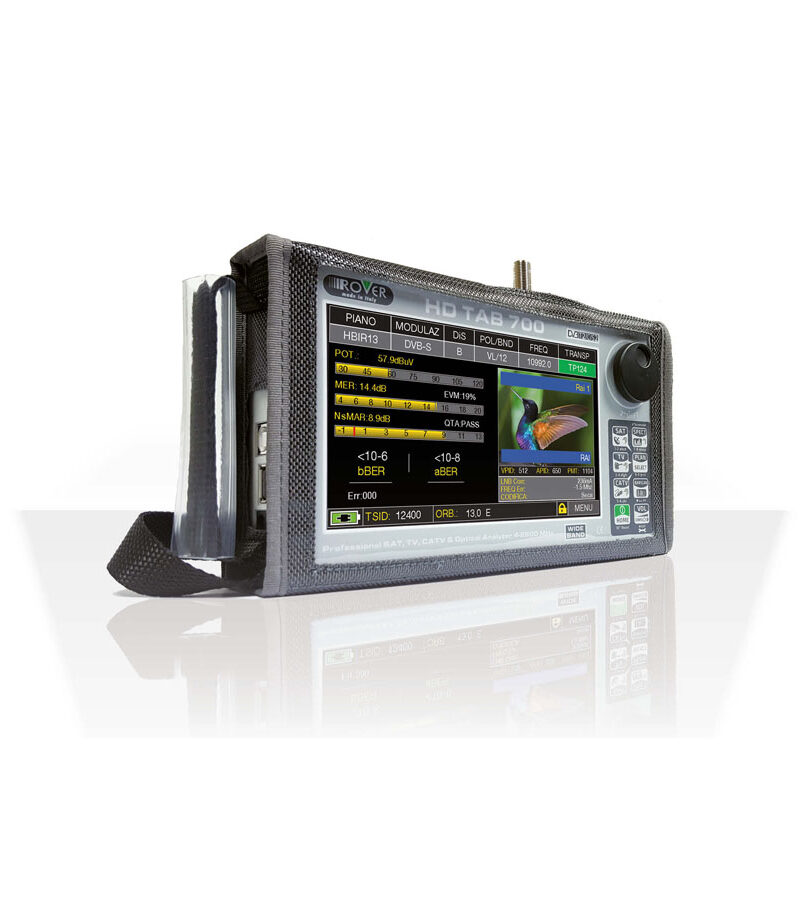

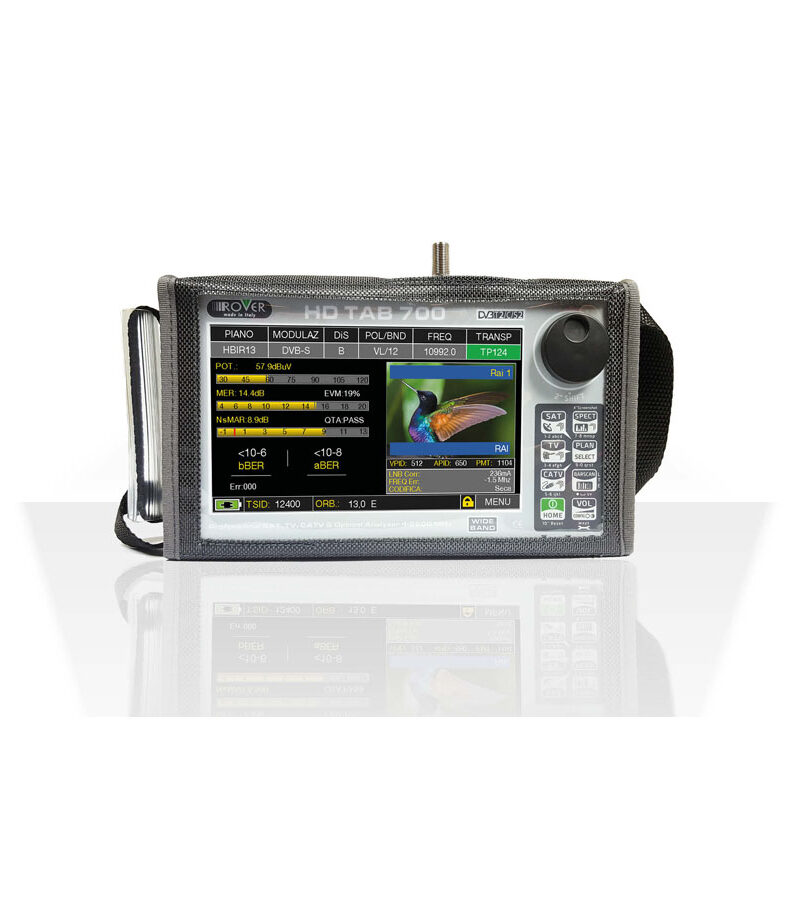

Roversat HD TAB 700 – Cable, Satellite, Stacker & TV Spectrum Analyser

Add to Saved Products

SKU: Rover-TAB700 Category: z- Obsolete Items -z Tags: FOXTEL Approved, Meters, Roversat

RoverSat HD TAB 700 – Spectrum Analyser – TV/SAT/CABLE Foxtel App F31080 for B/Bone and Fitoff for 5-Wire MDU, STACKER (SMS) MDU, Commercial & TDT(QAM) & supplied with Easy Padded Bag

7” TFT TOUCH display: 16:9 high resolution
Free Transport Stream Recorder (TSR) App Installed (Normally $500 extra)
Frequency Range:
TV and CATV TUNER, extended band, 4-1250 MHz;
SAT TUNER, extended band, 930-2.610 MHz;
GSM extended band, 860-1.000 MHz for telephone repeater installation
Input Impedance: 75 ohm (interchangeable “F” connector)
Digital Measurements: Digital Power, MER, BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
Housing: Metal box with Easy padded bag
Weight: only 1,4 Kg
Size: H 25,5 x W 13,0 x D 4,0 cm (meter only)

FOXTEL Approved
5-WIRE
SMS STACKER
TDT/QAM

F31080

Additional:

Analogue Measurements & Picture: Analogue level, V/A ratio
Power range Measurements: TV 28 to 130 dBμV, SAT 30 to 130 dBμV
Net-id on board: Net-Id, NID, TSID, LCN, SAT Orbit Position
Fast spectrum with MAX HOLD: Full spectrum capabilities with memory peak, variable span and automatic reference level
Constellation: for TV/CATV and SAT signals
Echoes, Pre-echoes, Micro-echoes: Representation in real time
Quality: Digital auto quality test: PASS-MARGINAL-FAIL
Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit rate all on one screen
TV Memory plan: World Wide countries with related channels plans pre-memorized
SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
Manual Memory Plan: Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
Loggers: TV, SAT & combined with stop & go function
Free SMART PC interface program and FW upgrades
DC voltage at RF input: 5 – 12 – 18 – 24 V, DiSEqC, SCR and dCSS
Battery: Li-Po battery pack, 4 h duration
Power supply & Battery charger: 12VDC 1A
USB PC Interface: For SW upgrade and memory plan management
USB PC Interface: For storage memory stick
