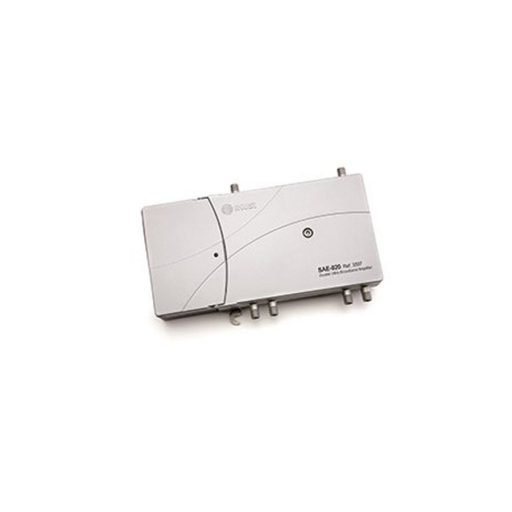

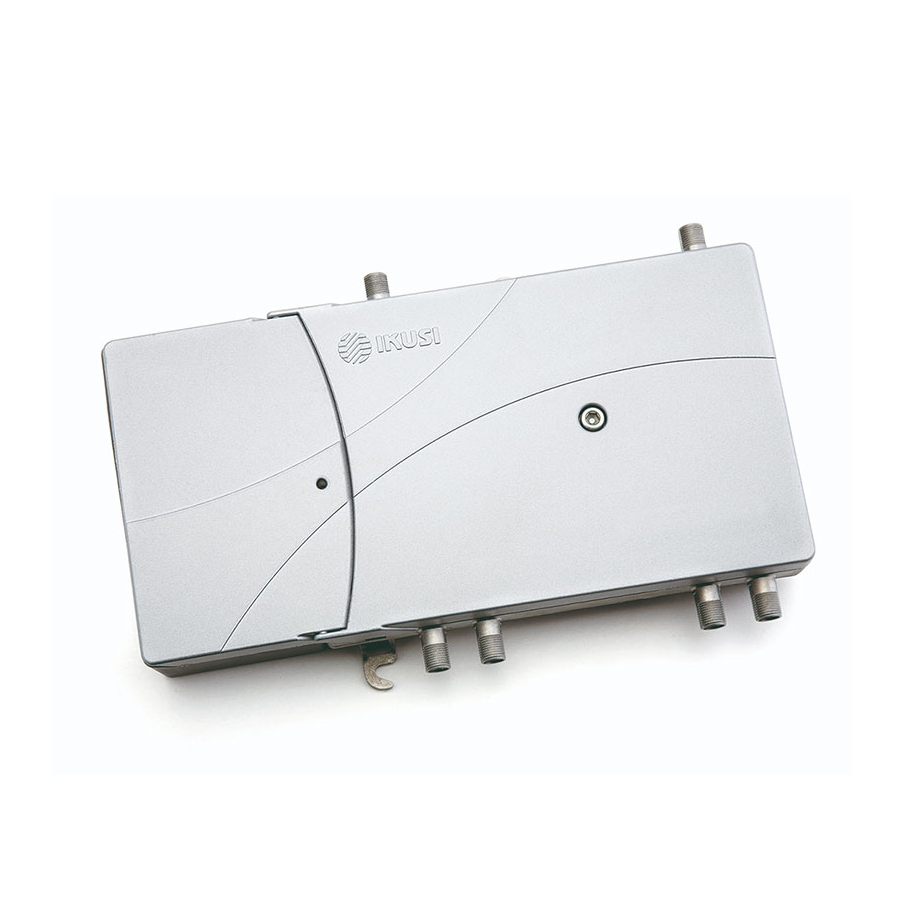

IKUSI by FAGOR 3507 SAE Series: SAE-920: Line Extender Repeater Amplifier, Dual (2) SAT(IF)+Terrestrial

IKUSI by FAGOR 3507 SAE-920 Line Èxtender, 2 Inputs TV+IF(45-862+950-2150MHz) & IF(950-2150MHz) GAIN=35dB Output Level 120dBµV (FOXTEL F30122) “Requires IEC C7 (Figure 8) Power Lead”

System Amplifier Repeater / Extension for Terrestrial + Single Satellite

• 2 Inputs: 2 (TV+IF-1 ; IF-2)
• 2 Outputs: 2 (TV+IF-1 ; TV+IF-2)
• Forward Gain: 35dB,
• Gain Adjustment: 0-18dB
• Slope Control Adjustment: 0-182dB
• Output level 118dB
• Output Test Point: -30dB
• Mains Powered (Fig-8)

• Application in collective installations with two downlead distribution cables carrying 2 satellite IF and
  1 terrestrial TV signals.
• 1 TV + IF-1 input – 1 IF-2 input, 1 TV + IF-1 output – 1 TV + IF-2 output.
• Separated amplification paths for TV, IF-1 and IF-2 signals, each including attenuation and equalization adjustment potentiometers.
• GaAs-MESFET technology used for terrestrial amplification.
• External 75 Ω output test ports.
• Zinc alloy housing with protective cover for adjustment potentiometers. F type connection.
• Wall-fixing. Indoor mounting. Grounding terminal. Dimensions: 222 x 140 x 44 mm.

IKUSI 3507: SAE-920
