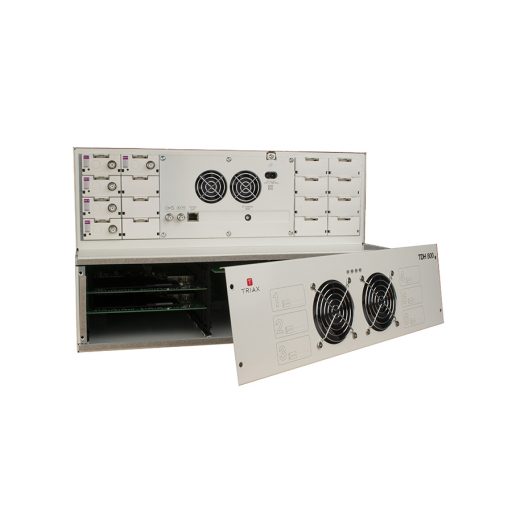

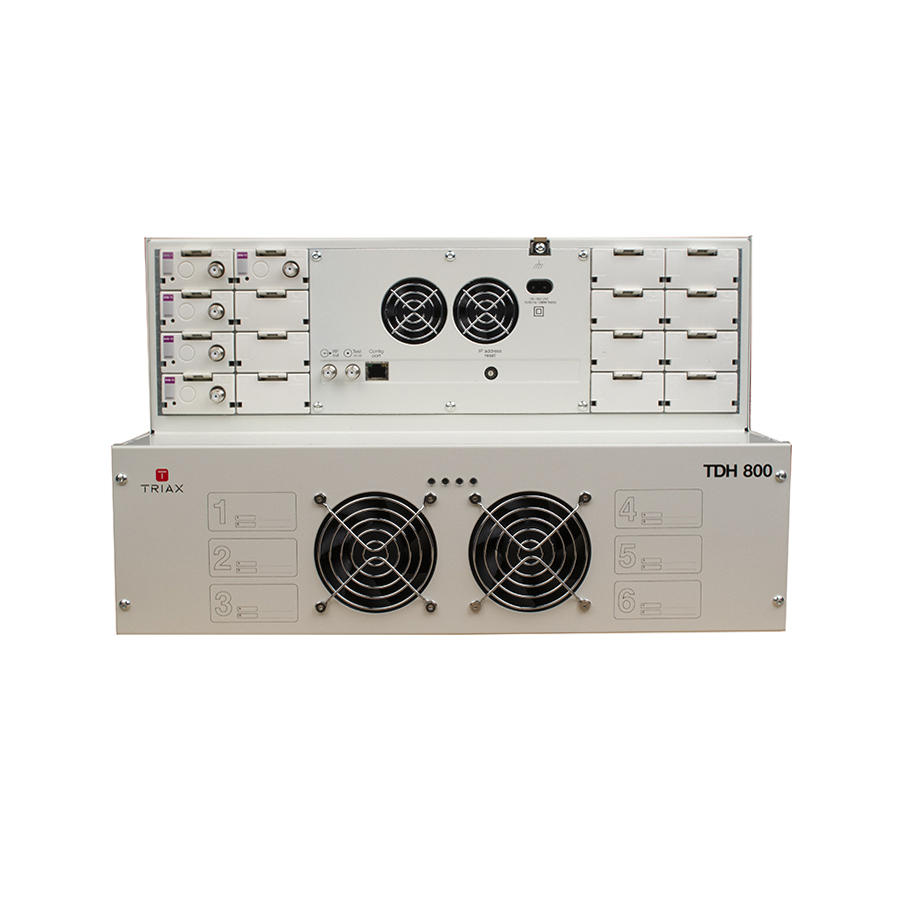

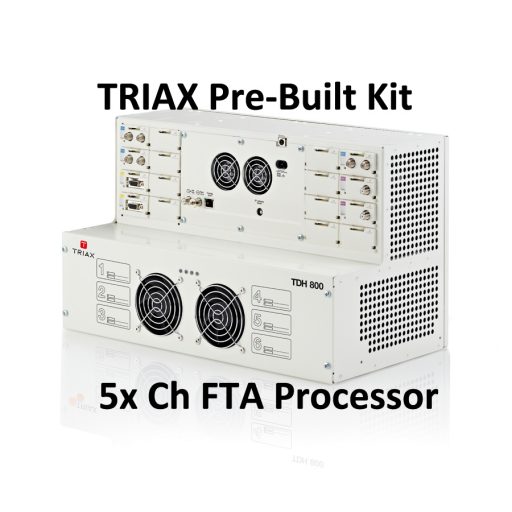

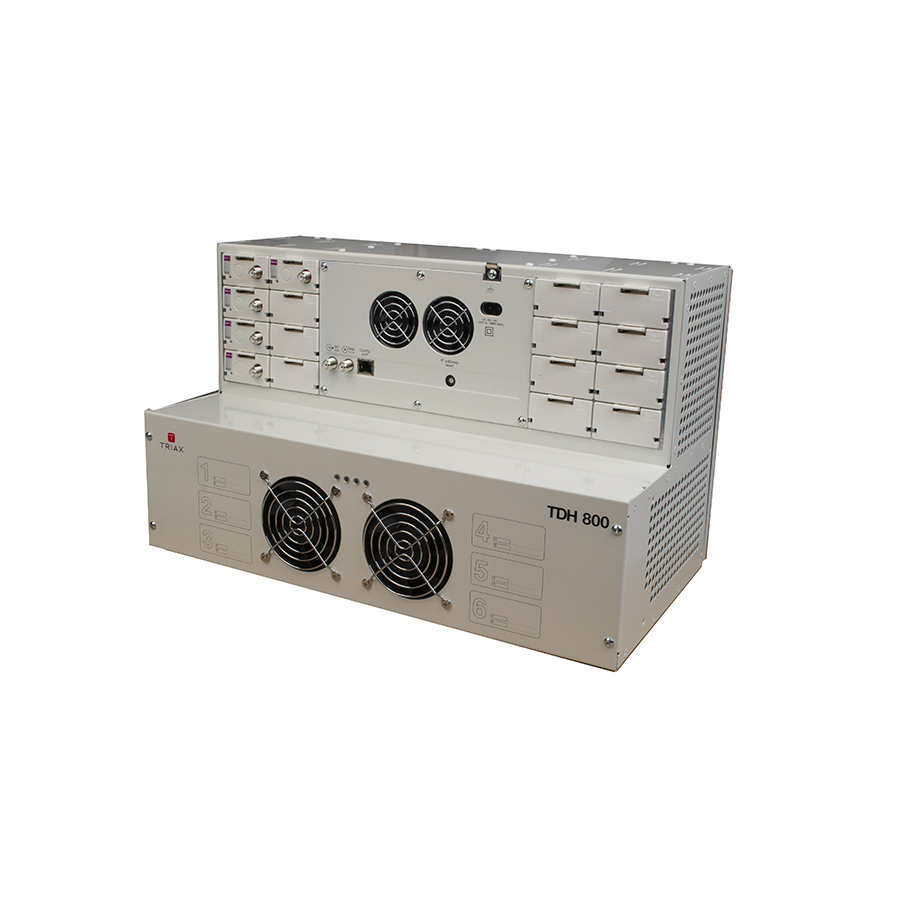

TRIAX 692882 TDH800 KIT Terrestrial Headend – 5 Carrier/Channels Free to Air Digital Processing Headend
$11,385.00 Inc. GST
TRIAX – TDH800 692882 Series Packaged Kit – Terrestrial Free to Air Digital Processing Headend
Package includes
- 1x TDH-Base – Main cabinet unit

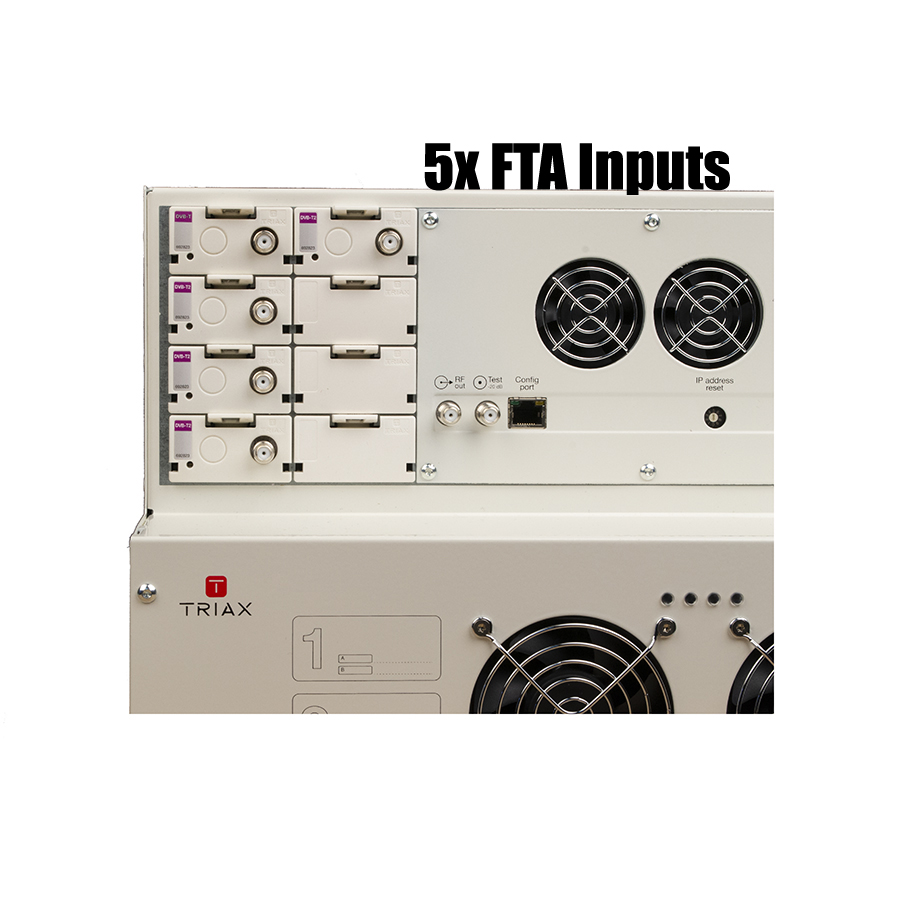

- 5x TDH-FE-DVBT/T2 – Frontend input modules
Accommodates five channel input i.e. ABC, 7, 0, 10 & SBS - 2x TDH-BE-DVBT – Backend output modules
Process and clean input terrestrial signals with only those five channels passing into MATV system
Expansion options include additional terrestrial, satellite, AV & HDMI input modules
| Weight | 15 kg |
|---|---|
| Dimensions | 55 × 34 × 38 cm |
Click to view - TRIAX Proud Heritage Brochure
Click to view - TRIAX Technical Catalogue Headends
Click to view - TRIAX TDH800 Main Equipment – User Manual
