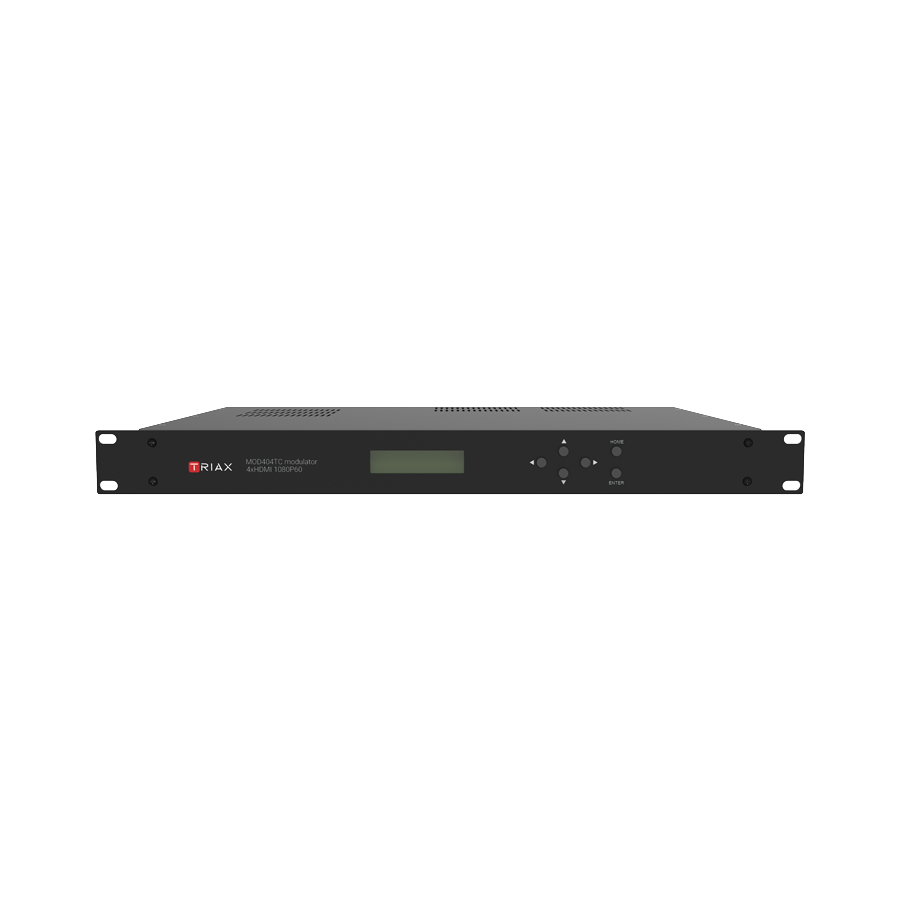

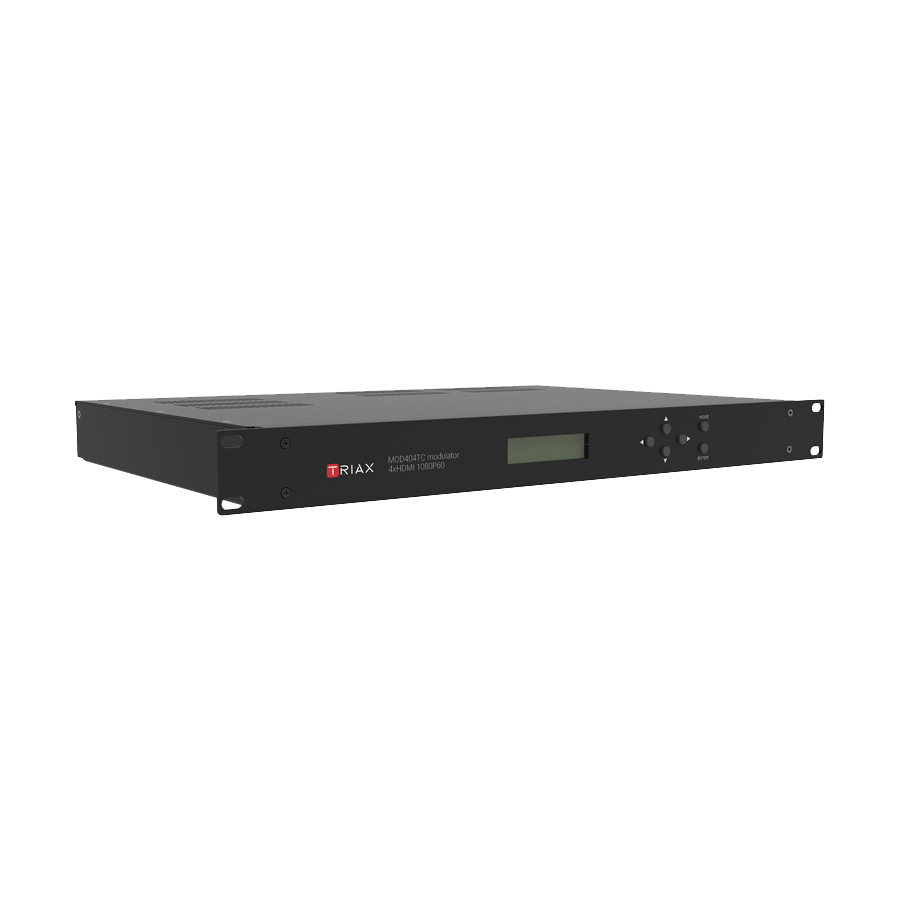

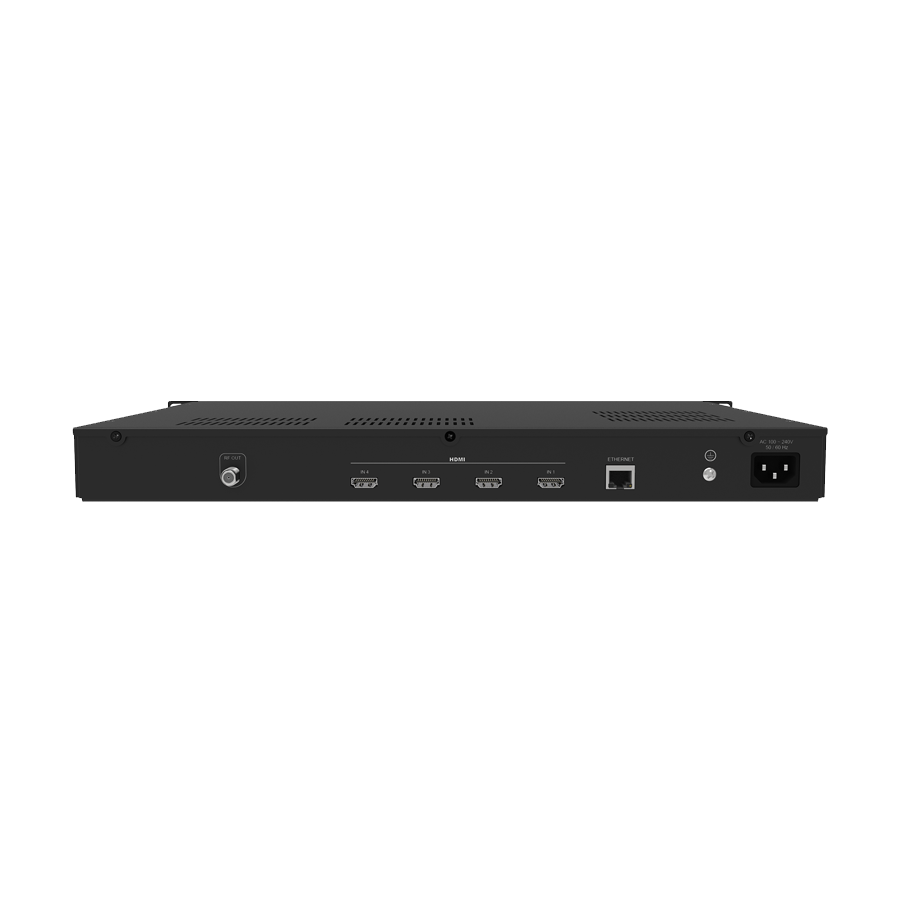

Triax 300133 MOD404TC – 4x HDMI to 2xRF Modulator Supporting COFDM (DVB-T), 1080p60

The TRIAX 300133 MOD404TC is a versatile QUAD (4) HDMI source modulator designed to distribute high-quality digital audio and video signals over existing coaxial cable networks. It supports up to four HDMI sources, including FOXTEL, surveillance cameras, media players, satellite receivers, and computers.

The unit integrates H.264 encoding with selectable DVB-T (COFDM) or DVB-C (QAM) modulation, converting HDMI signals into RF output for reliable distribution to multiple TVs or set-top boxes.

Key features:

• 4x HDMI Inputs
• Dual Output Modulation: DVB-C / DVB-T (2-in-1 solution)
• Wide Video Resolution Support:
  Input: 480i/p, 576i/p, 720p, 1080i/p,
  Output: Up to 1080p@50/60Hz
• Output Frequency Range: DVB-T: 177-858 MHz
• Efficient RF Distribution:
  2 RF output channels for 4 HDMI sources (2 HDMI sources per RF channel)
•  Adjustable RF Output Level:
  95 dBμV minimum,
  0-30 dB attenuator (1 dB step adjustment)
• High Signal Quality: MER ≥ 35 dB
• User-Friendly Control:
  Integrated LCD display and front-panel buttons,
  Web-based control and firmware updates
• Compact & Rack Mountable Design 19: 1RU
• Preconfigured Default Settings for DVB-C and DVB-T
