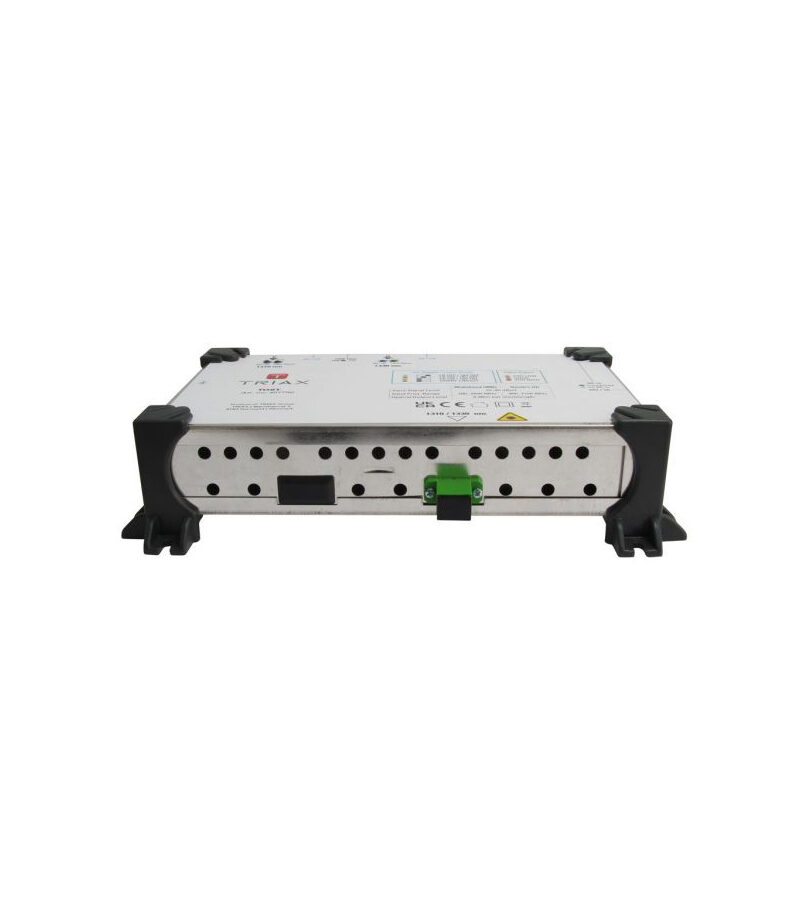

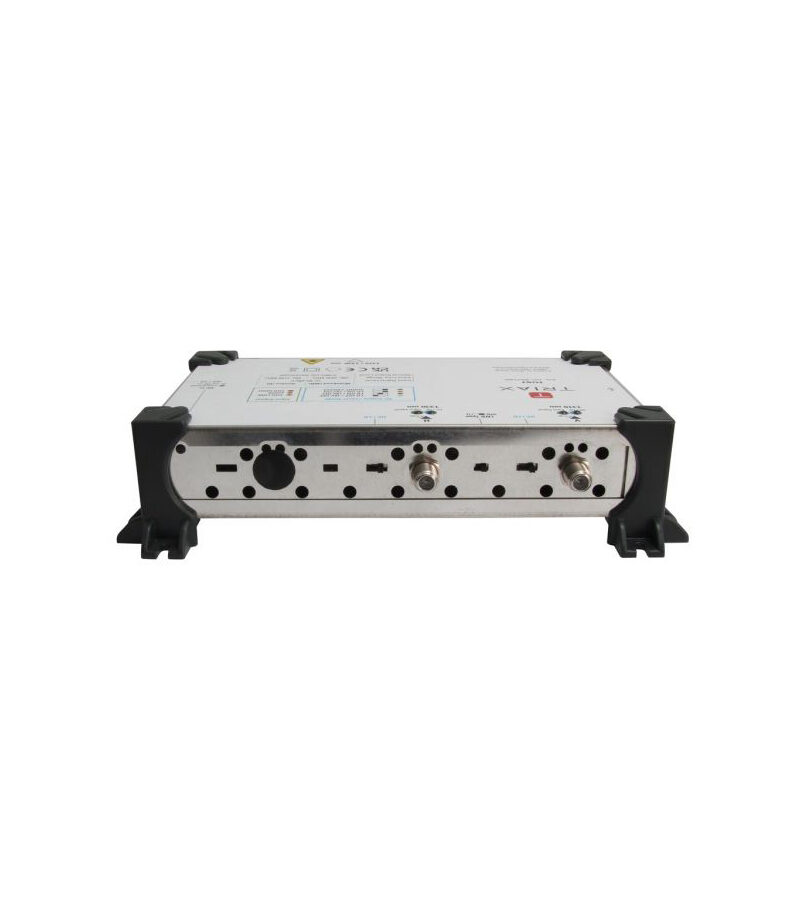

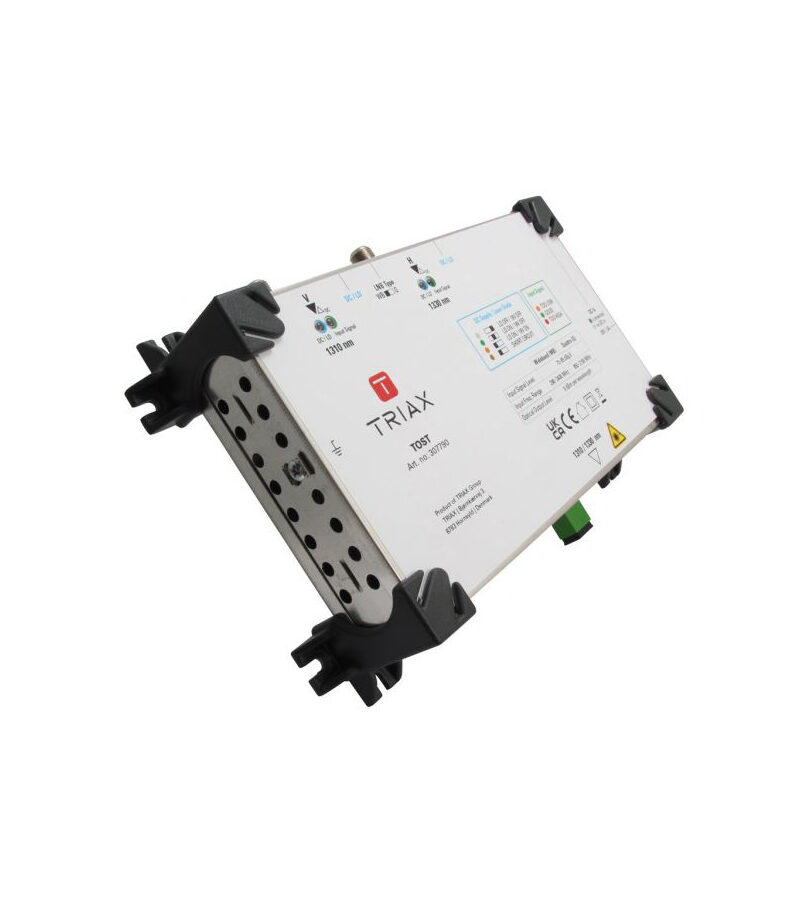

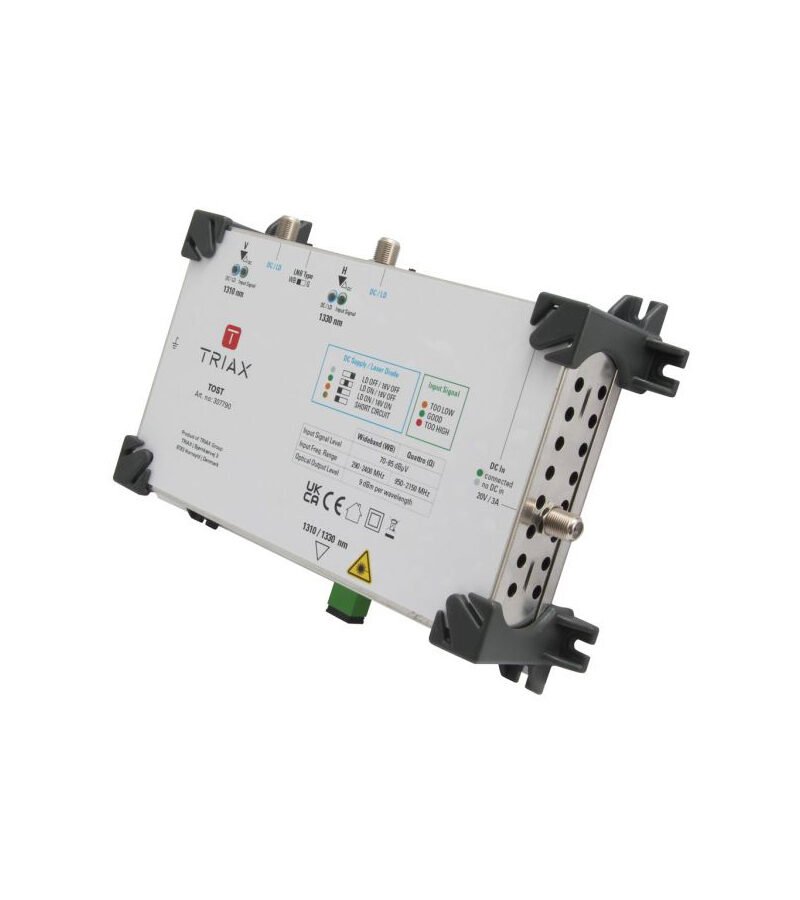

Triax 307790 TOST Optical SAT(H&V) +9dBm Transmitter over SINGLE Core OS1/2, SC/APC, 2x SAT F-type IN (H & V 1310/1330nm) for use with Triax TWOT Receiver

Triax 307790 TOST Optical SAT(H&V) +9dBm Transmitter over SINGLE Core OS1/2, SC/APC, 2x SAT F-type IN (H & V 1310/1330nm) for use with Triax TWOT Receiver

Integrated services on a single fibre

• SAT-IF Horizontal and Vertical Polarities over a SINGLE OS1/2 Optic Fibre CORE.
• +9dBm Transmitter
• SAT H & V (1310nm & 1330nm)
• Great Point to Point or Point to many
• Input: 2x F-type Connections
• Output: Single SC/APC Fibre Connection
• Almost lossless transmission of satellite, DVB-T and DAB signals. Attenuation per 1000 m only about 0.3 dB.
• Use with Triax TWOC Optical Receiver
