TRIAX 307916 TORT-1550 Optical Rack Transmitter, 1550nm,+5dBm, 19”1RU, Dual PSU, SC/APC
NEW
$2,750.00 Inc. GST
Available on back-order
Description

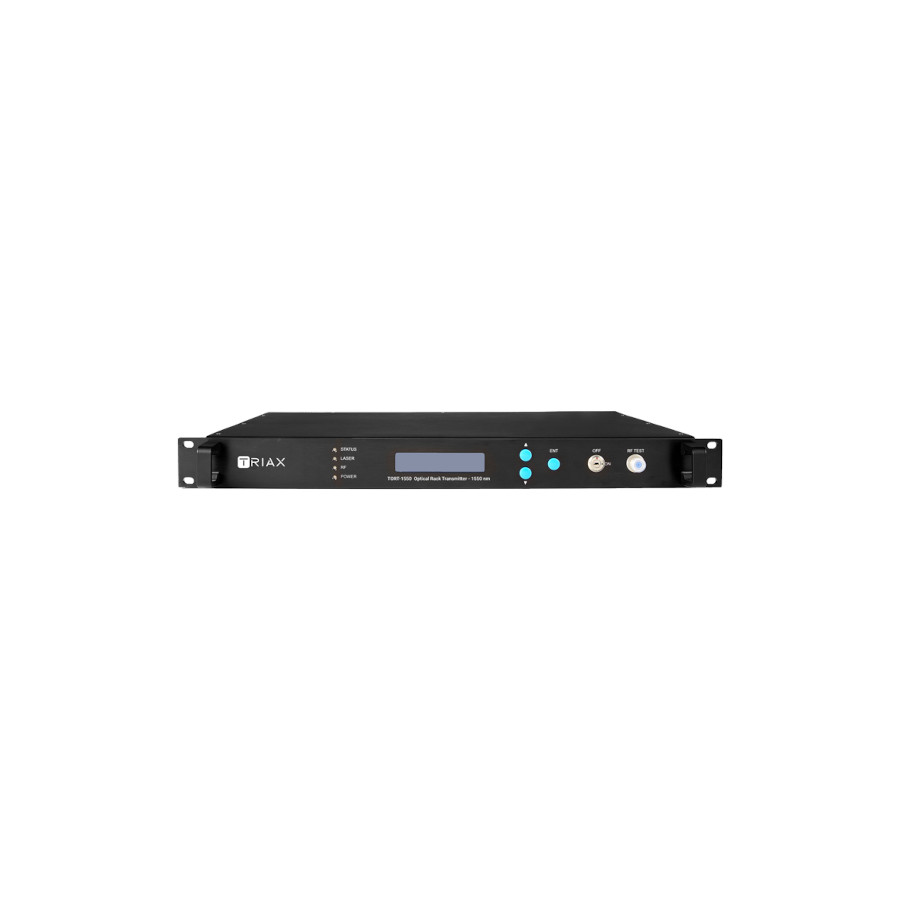

Triax 307916 TORT-1550 Optical Rack Transmitter, 1550nm, +5dBm, 1RU, Dual PSU, SC/APC
Requires 2x 3pin AU Wall Plug to IEC C13 connector (Kettle) Power leads
Optical Transmitter 19″ 1RU rack mounted 47-2400MHz 1550nm to carry CATV &/or one band of IF Satellite to your EDFA/EYDFA for larger Optical Networks. Use with TRIAX TOFA range of EYDFA and compatible with TRIAX GPON OLT, ONU & ONT’s. TRIAX TDmH & TDcH Headend Fibre distribution solution.
- 47-2400MHz (RF+SAT)
- 1550nm EDFA/ EYDFA compatible
- LCD Front Panel display for easy status monitoring
- Front Panel operation of basic functions with key lock
- RF Test Port on front panel
- Remote SNMP & Web Supported
- Dual hot plug power supply
- Intuitive GUI Management
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 49 × 38 × 6 cm |
Downloads
Available downloads for this item:
Click to view - Product DATA Sheet
Click to view - TORT-1550 User Manual
Click to view - TRIAX-TOF-Brochure-2025
