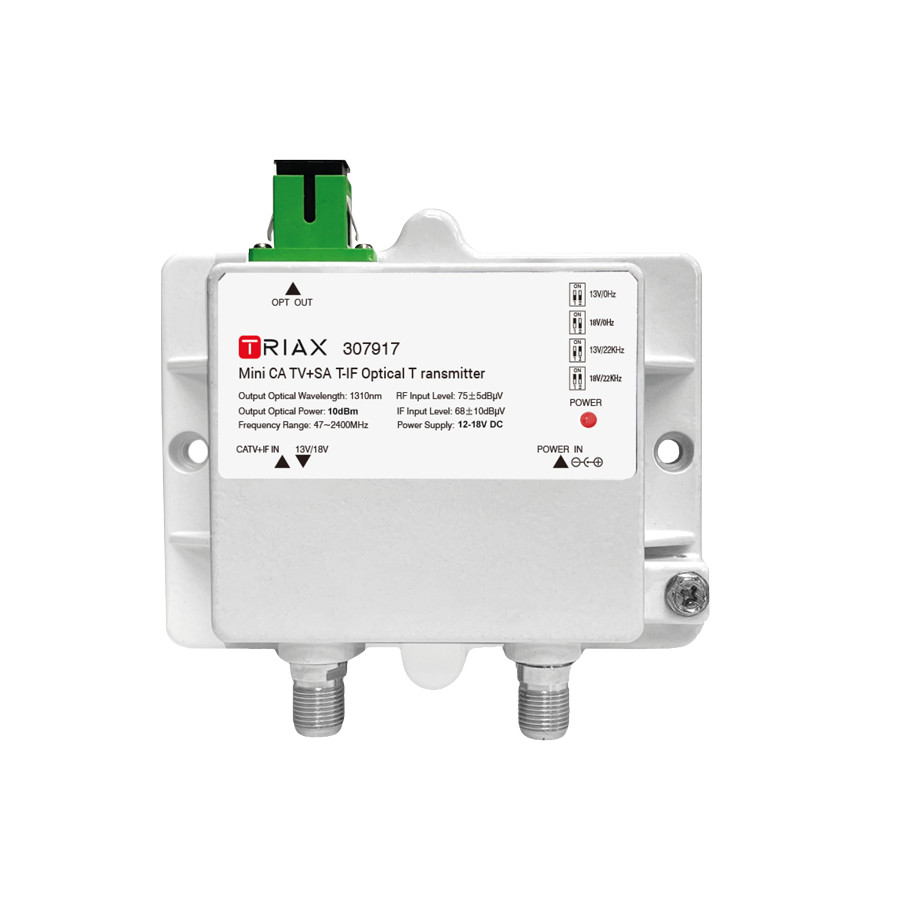

TRIAX 307917 TOMT-1310 Optical MINI Transmitter, SC/APC, 1310nm, +10dBm, TV & SAT
NEW
$921.80 Inc. GST
Description
TRIAX 307917 TOMT-1310 Optical MINI Transmitter, SC/APC, 1310nm, +10dBm, Input 47-862 CATV@75dB + 950-2400 SAT@68dB. Requires 12VDC 1.5A F-type PSU (PS-12VDC1500/2.1 + PL-Fs/DC2.1)
TOMT-1310 TRIAX Optical Mini Transmitter 1310nm +10dBm CATV/IF 47-2400MHz
- Wide operating frequency range: 47-2400MHz
- SC.APC Optic INPUT
- Power Connection via F-Type Male/Socket
- Excellent linearity and flatness
- High return loss
- Uses GaAs amplifiers
- Ultra low noise technology
- Uses DFB coaxial small package laser
- Compact design for easier installation
- Red-LED for power indication
- Output 13/18V, 0/22KHz for LNB

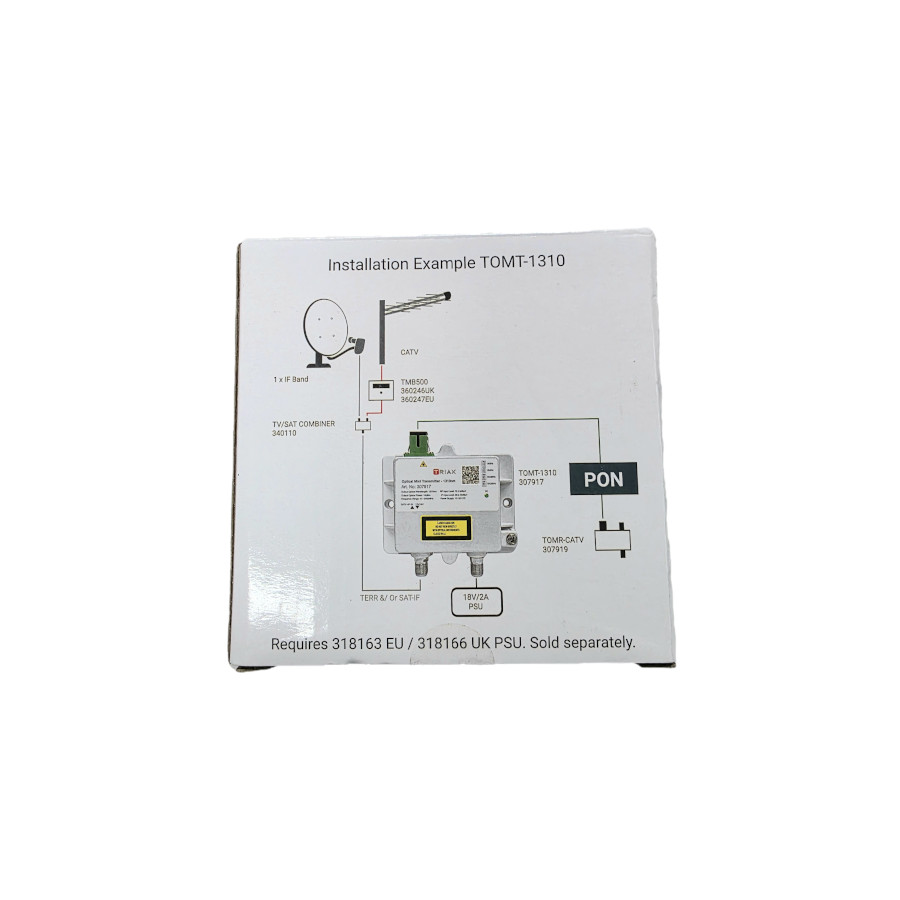

- Use with TRIAX 307919 TOMR-CATV Mini Receiver for Point to Point
Power Supply & Injectors
Power Supply: 12VDC – 1500mA MEPS SMPS with 2.1mm C+ DC Plug
$22.00 Inc. GST
Power Supply & Injectors
Powerlead Adaptor Cable: F-Type Male/Plug Connector to DC 2.1 Socket/Male
$11.00 Inc. GST
Additional information
| Weight | .25 kg |
|---|---|
| Dimensions | 10 × 9.8 × 2.8 cm |
