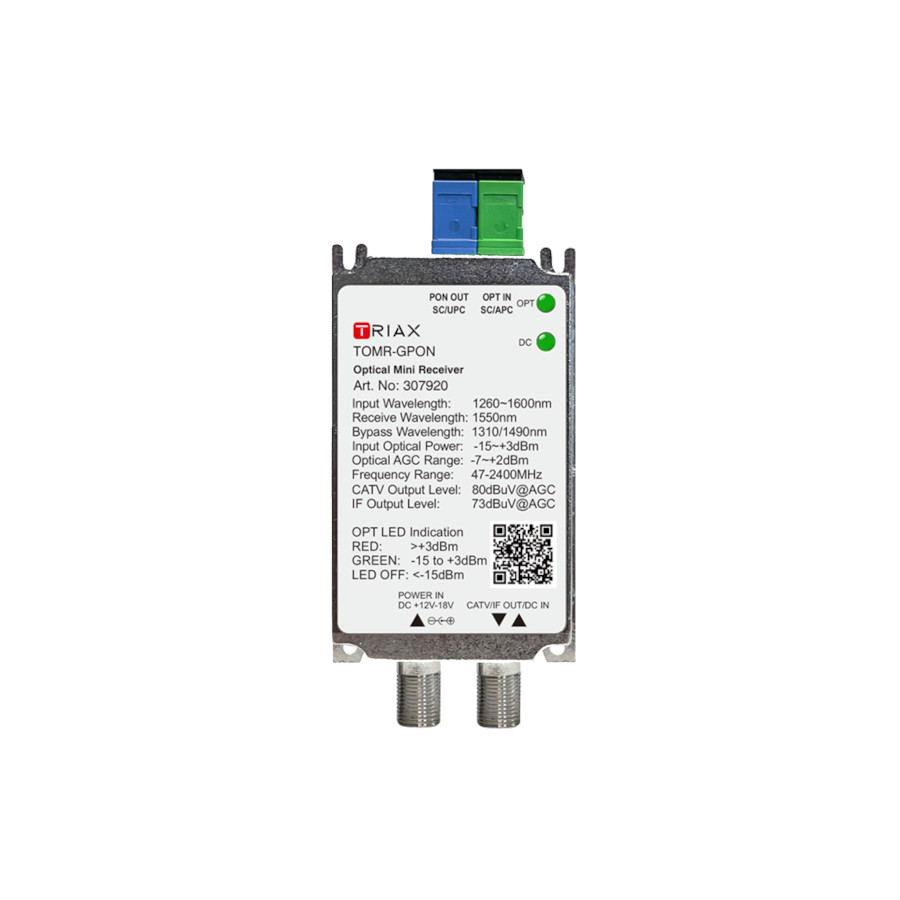

TRIAX 307920 TOMR-GPON Optical MINI Receiver with PON Pass MATV 47-862 + SAT 950-2400
NEW
$145.20 Inc. GST
Description
TRIAX 307920 TOMR-GPON Optical MINI Receiver with PON Pass via SC/UPC, SC/APC Input +3~-15dBm (+2~-7dBm AGC), Output 47-862 CATV (AGC80dB) + 950-2400 SAT (AGC78dB). Requires 18VDC 0.15A F-type PSU (PS-18VDC1600/F)
Product Number: 307920
- Designed for FTTH (Fibre To The Home) networks
- Wide operating frequency range : 47-2400MHz
- Excellent linearity and flatness
- Wide range of optical input power
- High return loss
- Uses GaAs amplifiers
- Ultra low noise technology
- Compact design for easier installation
- LED for power & optical level indication
- Built-in WDM, 1310nm/1490nm Optical Bypass Port
- Built-in AGC function
- Requires power supply – sold separately – HERE
Additional information
| Weight | .25 kg |
|---|---|
| Dimensions | 8.8 × 5.0 × 2.2 cm |
Downloads
Available downloads for this item:
Click to view - Product DATA Sheet
Click to view - TOMR-GPON user manual
Click to view - TRIAX TOF Brochure 2025
