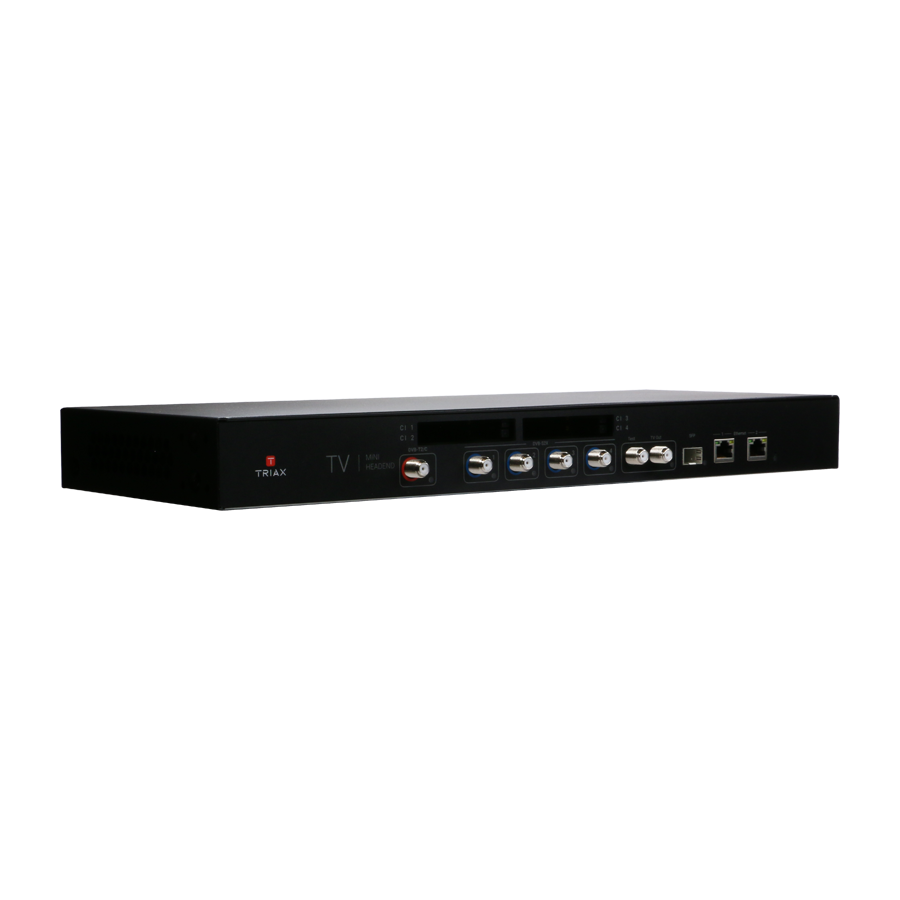

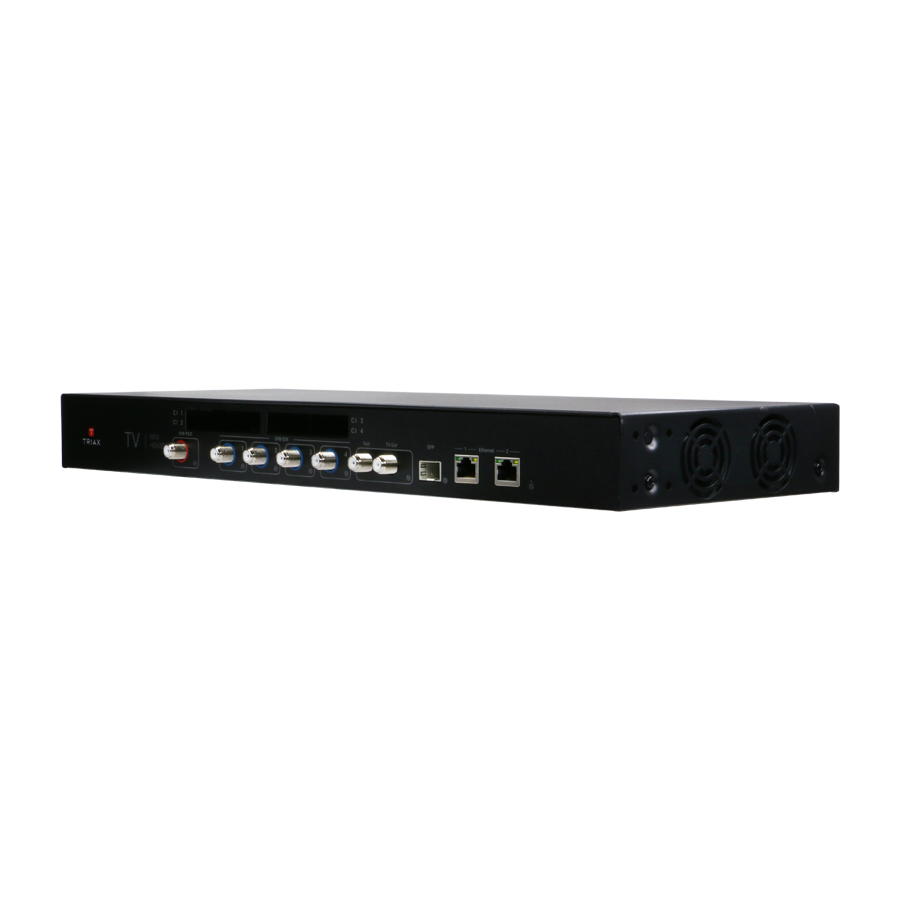

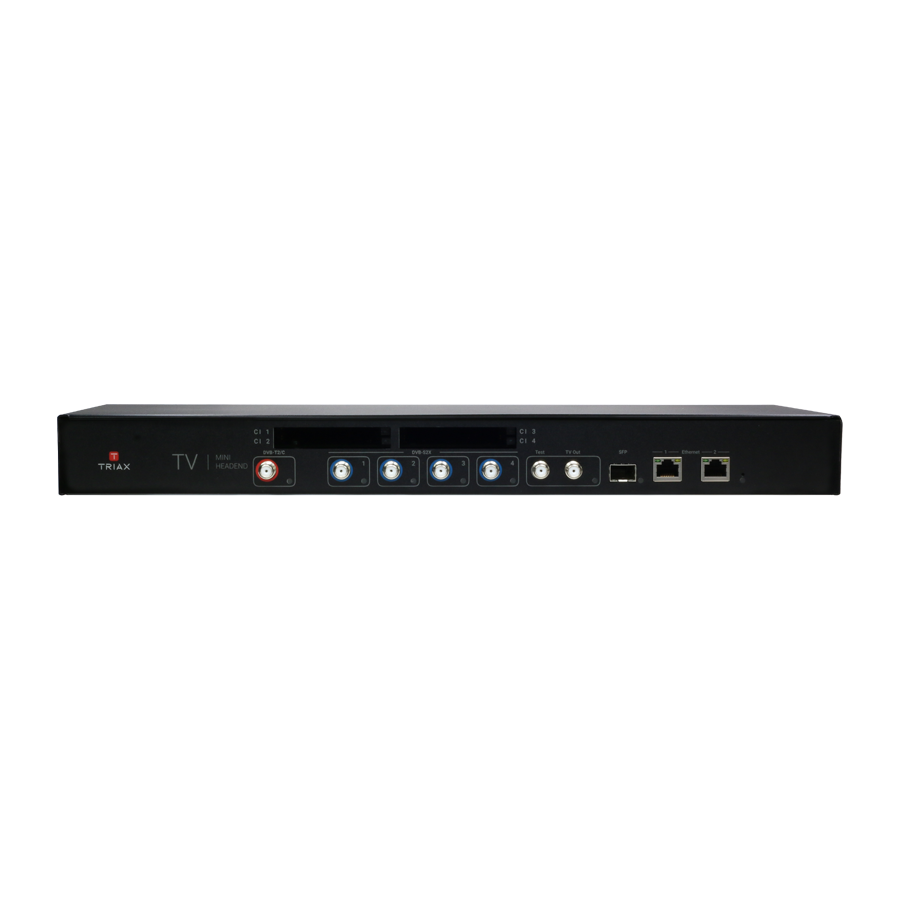

TRIAX 492774 TDmH 14STC-I MINI Series 6xDVB-T 8xDVB-S/S2 & IPTV IN with 4CI to 8xDVB-T/C &/or IPTV
Description
The Triax TDmH 14STC-I (492774) MINI Series Professional TV Headend is a versatile platform designed for professional TV signal reception and distribution. It supports Free-to-Air (FTA) television services, Freeview , FOXTEL, and the VAST (Viewer Access Satellite Television) Remote FTA Satellite Service. The unit can decrypt subscription services using CAM modules and smart cards via integrated CI slots, and can simultaneously output content as DVB-T COFDM digital terrestrial signals and Multicast IPTV streams (UDP / RTP). This makes it an ideal solution for hotels, motels, aged care facilities, apartment complexes, and other multi-dwelling or commercial television distribution environments.
Key Features:
- Receives Freeview, FTA satellite, FOXTEL, and VAST services
- CI slots for CAM and smart card-based service decryption
- DVB-T COFDM RF output
- Simultaneous Multicast IPTV output (UDP/RTP)
- Professional headend solution for MATV and SMATV networks
- Compact MINI Series modular design
A great solution for Terrestrial Free to Air processing and regeneration, VAST and FOXTEL offering out on DVB-T UHF or upgradeable to include Multicast IPTV UDP/RTP. Include extra services delivered by HDMI
Built on the same cutting-edge and well-tested software platform used for TD(c)H Compact Headend, but with reduced capacity to meet the requirements for an entry-level headend. Complimentary updated software offers new and existing customers additional functions, benefits, and powerful hardware configurations to match your requirements.
Features – Triax TDmH-14STC-I (492774)
- 6 × DVB-T Terrestrial Free-to-Air (FTA) Broadcast Inputs
- 8 × DVB-S/DVB-S2 Satellite Transponder Inputs
- 4 × Common Interface (CI) Slots for CAM modules and smart cards
- 8 × DVB-T COFDM UHF Adjacent Channel Outputs
- Upgradeable License Option for simultaneous Multicast IPTV output, supporting up to 48 SPTS (Single Program Transport Stream) UDP/RTP streams
- Upgradeable License Option for Multicast IPTV input conversion to DVB-T COFDM output, supporting up to 48 SPTS and MPTS (Multiple Program Transport Stream) UDP/RTP streams
- Upgradeable License Option for SNMP network monitoring and management
- Channel Multiplexing capabilities for both RF and IP outputs
Applications
The TDmH-14STC-I is ideal for:
- Hotels and resorts
- Motels and caravan parks
- Aged care facilities
- Hospitals and healthcare facilities
- Apartment buildings and MDUs
- Clubs and commercial venues
- Educational campuses
Summary
The Triax TDmH-14STC-I MINI Series Professional TV Headend combines terrestrial and satellite reception, CI-based decryption, DVB-T modulation for MATV and SMATV, IPTV streaming, and channel multiplexing in a compact, scalable platform. With support for Freeview, FTA television, FOXTEL, and VAST services, it provides a powerful solution for professional RF and IPTV distribution networks.
Power Supply & Injectors
Power Lead: 2pin AU wall plug to IEC C7 connector (Figure 8) 1.8M
$6.60 Inc. GST
Accessories
Triax 492086 SFP RJ45 Ethernet Adaptor Support 1000BASE-T Req. with TDcH & TDmH for IPTV IN/OUT
$632.50 Inc. GST
Additional information
| Weight | 6 kg |
|---|---|
| Dimensions | 51 × 28 × 15 cm |
Downloads
Available downloads for this item:
Click to view - TRIAX TDcH & TDmH – 5 Year Limited Warranty
Click to view - TRIAX TDcH & TDmH Headend User Manual
Click to view - TRIAX – Proud Heritage Brochure
Click DOWNLOAD LINK - TRIAX Products - Latest Firmware
