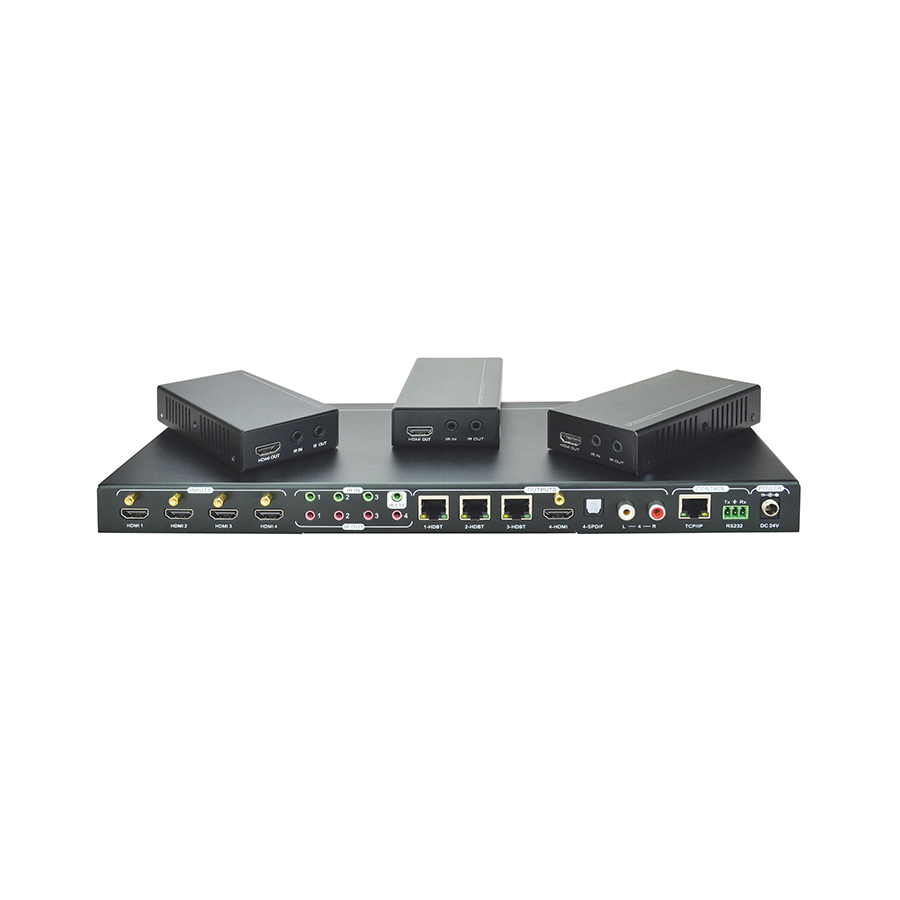

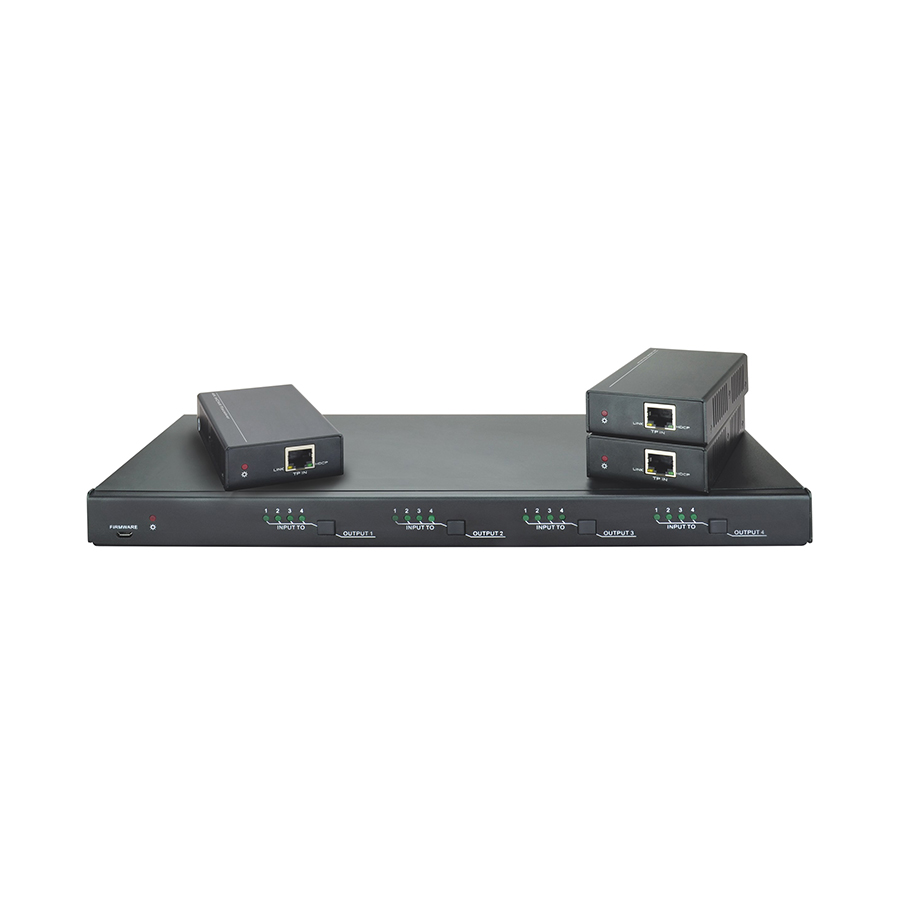

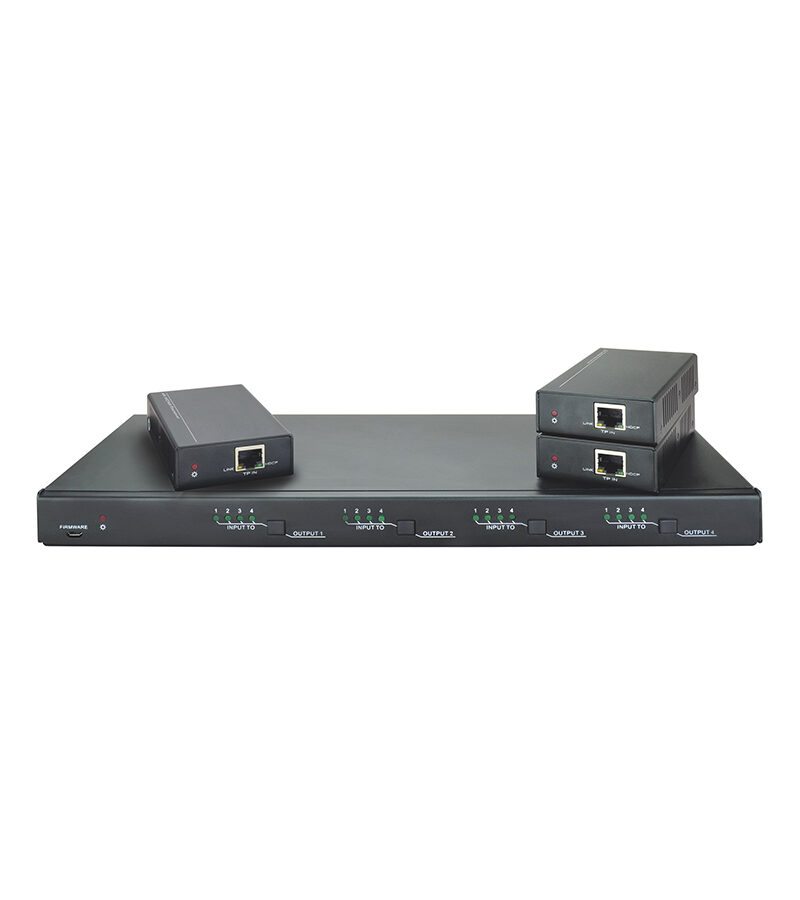

TRIAX HMX 431 HDBaseT 4K UHD 4 Source, 1xHDMI 3xHDBaseT, Matrix Kit

Enables 4K content from 4 HDMI devices to be viewed and controlled simultaneously at 4 locations.

Kit includes

• 1x 4K HMX431 Matrix
• 4x Remote controls
• 4x IR Receivers
• 4x IR Emitters
• 1x RS232 Cable
• 3x HDBaseT Receivers
• 1x Power adapter

Advantages

• Supports HDMI 1.4 & HDCP 2.2 and is backwards compatible with all previous standards
• Transmits 4Kx2K@60Hz 4:2:0 & 1080p 3D
• Supports manual HDCP management and auto-detecting
• „Transmits 4Kx2K signal for 8m via HDMI port, 40m via HDBT port
• Audio source selectable via RS232 command
• 3 HDBaseT outputs, up to 70m at 1080p and 40m at 4Kx2K on a single CAT5e/6 cable can be achieved
• LED indicators show real-time switching status
• Controllable via front panel, RS232, IR and TCP/IP
• The HDBaseT Receivers are powered by the matrix switcher 12VDC by PoC technology
• Supports bi-directional IR control
• „Built-in GUI for TCP/IP control
• „Powerful EDID management
• Supports non-volatile memory [NVM] for reliable operation
• Supports firmware upgrade through Micro USB port

HMX 431 4K Kit
