TRIAX SCT Silver Series 8 Way TAPS 5~2400MHz F-Type
$23.10

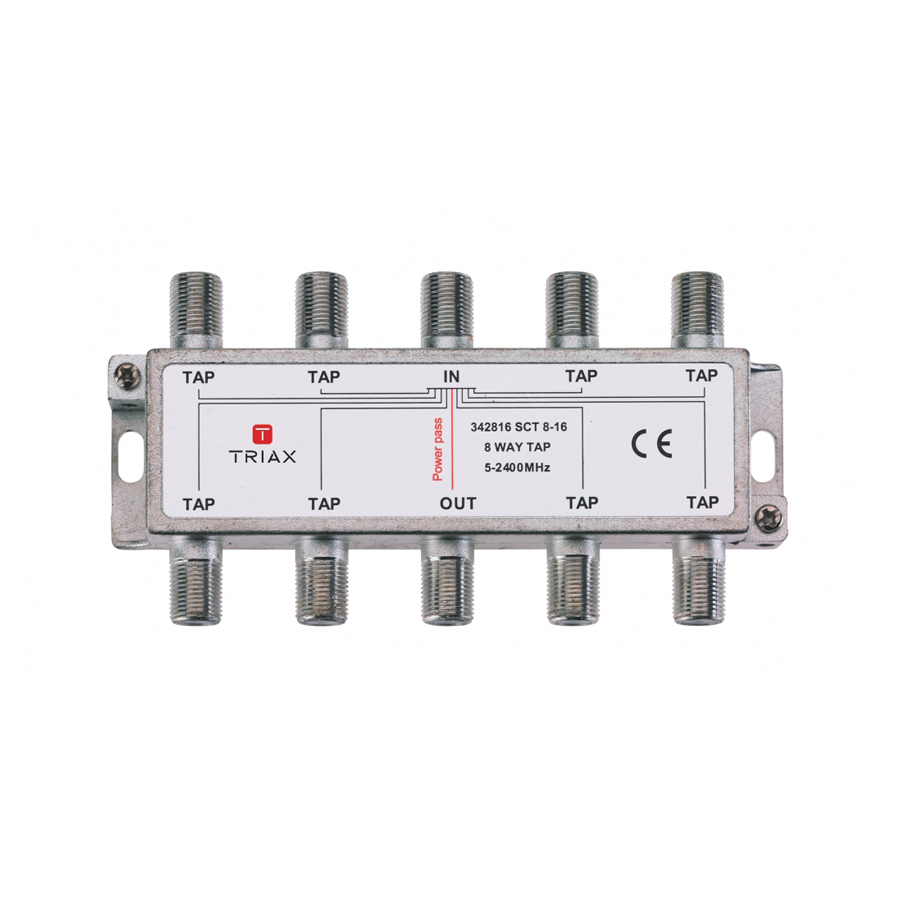

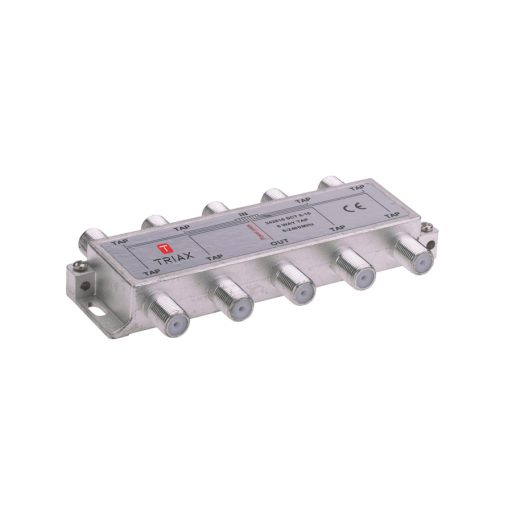

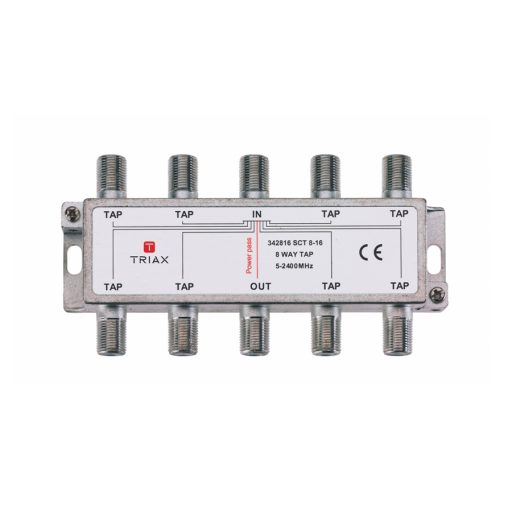

Triax SCT Silver Series 8-Way TV/SAT Taps – 2.4GHz
The Triax SCT Silver Series 8-way taps are designed for reliable signal distribution in SAT-IF and MATV networks. Operating across a 5–2400MHz frequency range, the series is available with 16dB and 20dB tap values.
The units feature DC/AC pass-through, high shielding performance and F-type female connectors, making them suitable for professional TV and satellite distribution systems.
Available Models
- T-SCT816 – 16dB
- Insertion Loss: 3.9dB
- T-SCT820 – 20dB
- Insertion Loss: 3.9dB
Common Features
- 8-way tap/coupler design
- Frequency range from 5MHz to 2.4GHz
- Suitable for SAT-IF and MATV distribution networks
- DC/AC pass-through up to 25V / 0.5A across IN-OUT paths
- Splitter outputs are DC-decoupled by diodes
- High shielding effectiveness of 110dB
- Return Loss Grade 3
- F-type female connectors
- High-quality tin-coated die-cast housing
- Optional plastic brackets for routing cable underneath the product
Applications
The SCT Silver Series provides a reliable solution for distributing TV and satellite signals across MATV and SAT-IF networks requiring multiple output connections. The 16dB and 20dB options provide flexibility when balancing signal levels within a distribution system.
The durable die-cast housing, high shielding performance and optional cable-routing brackets support neat and dependable professional installations.
| Weight | 0.0 kg |
|---|---|
| Dimensions | 0.0 × 0.0 × 0.0 cm |
| TAP Value | -16dB, -20dB |
Available downloads for this item:
Click to view - Product DATA Sheet
