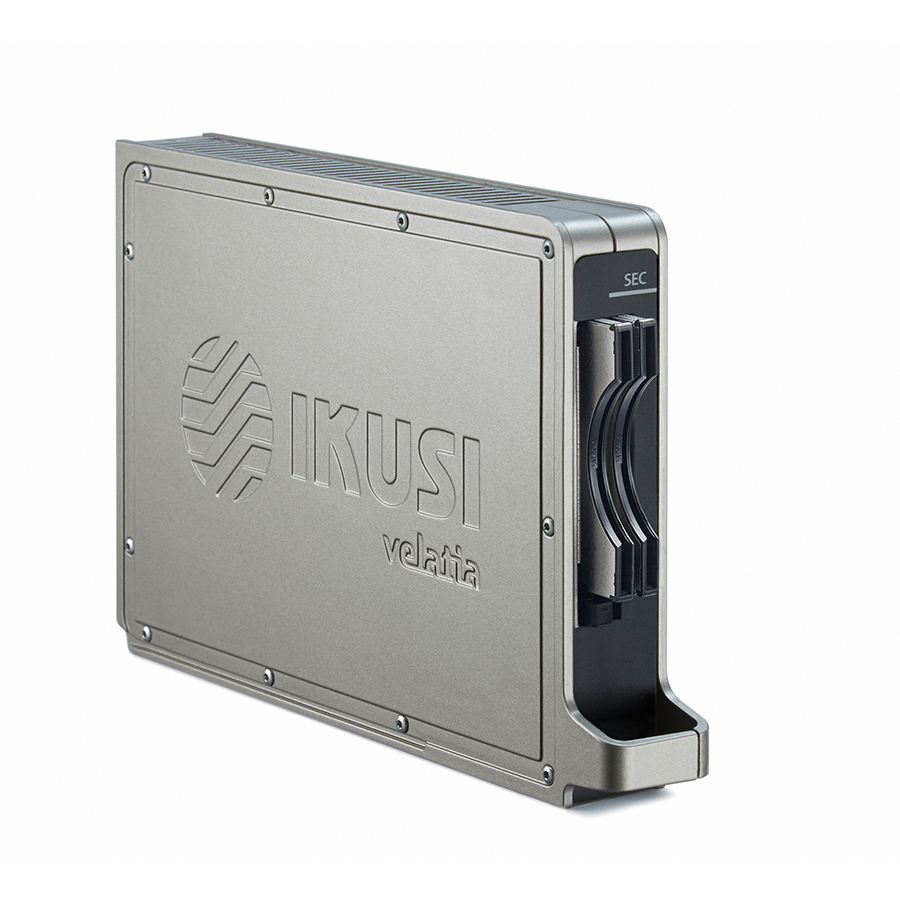

IKUSI by FAGOR 4311 FLOW SEC Twin (Dual) Common Interface Slot Module

The FAGOR FLOW formally known as IKUSI Flow is a Professional Modular TV Headend platform capable of Receiving and Distribution.  Designed for the reception of Terrestrial Freeview Free-to-Air (FTA) Television Broadcasts, VAST (Viewer Access Satellite Television) Remote Satellite FTA Services and FOXTEL and Free to Air Satellite services

Using FLOW SEC Modules, the FLOW can decrypt subscription services using CAM modules and smartcards via the CI (Common Interface) slots and by default outputs processed services to Multicast UDP IPTV streams,

The FLOW ENC Module enables reception of up to 4 individual HDMI sources that can be output to Multicast UDP IPTV streams.

With the addition of FLOW OUT Module the unit can also provide simultaneous content as DVB-T COFDM digital terrestrial signals for traditional coaxial MATV and SMATV systems

Key Features

• Modular architecture with interchangeable Inx4 Tuner, ENC HDMI Encoder, OUT for DVB-T Output, and SEC security modules
• Supports satellite (DVB-S/S2), Terrestrial (DVB-T/T2), IPTV, and HDMI sources
• Output options include Multicast UDP IPTV and DVB-T COFDM distribution
• Configuration through a web interface accessible via Ethernet or Wi‑Fi
• Content protection and DRM capabilities for secure content delivery

Main Hardware Components

• FLOW BASE 2.0 4312 – 12 Module chassis/platform.
• FLOW COVER 2.0 4316 – Magnetic Cooling Fan Cover
• FLOW HUB 2.0 4314 – Main Controller and IPTV output module.
• FLOW PSU 4308– Power Supply unit.
• FLOW INx4 4319– Multi-standard Tuner input modules.
• FLOW SEC 4311– Dual CAM/Common Interface security modules.
• FLOW ENC+ 4321– QUAD HDMI encoder modules
• FLOW OUT 4313 – DVB-T COFDM Output modules.

Typical Applications

• Hospitality (hotels and resorts)
• Hospitals
• University campuses
• Corporate buildings
• Residential TV distribution systemsikusi+1
