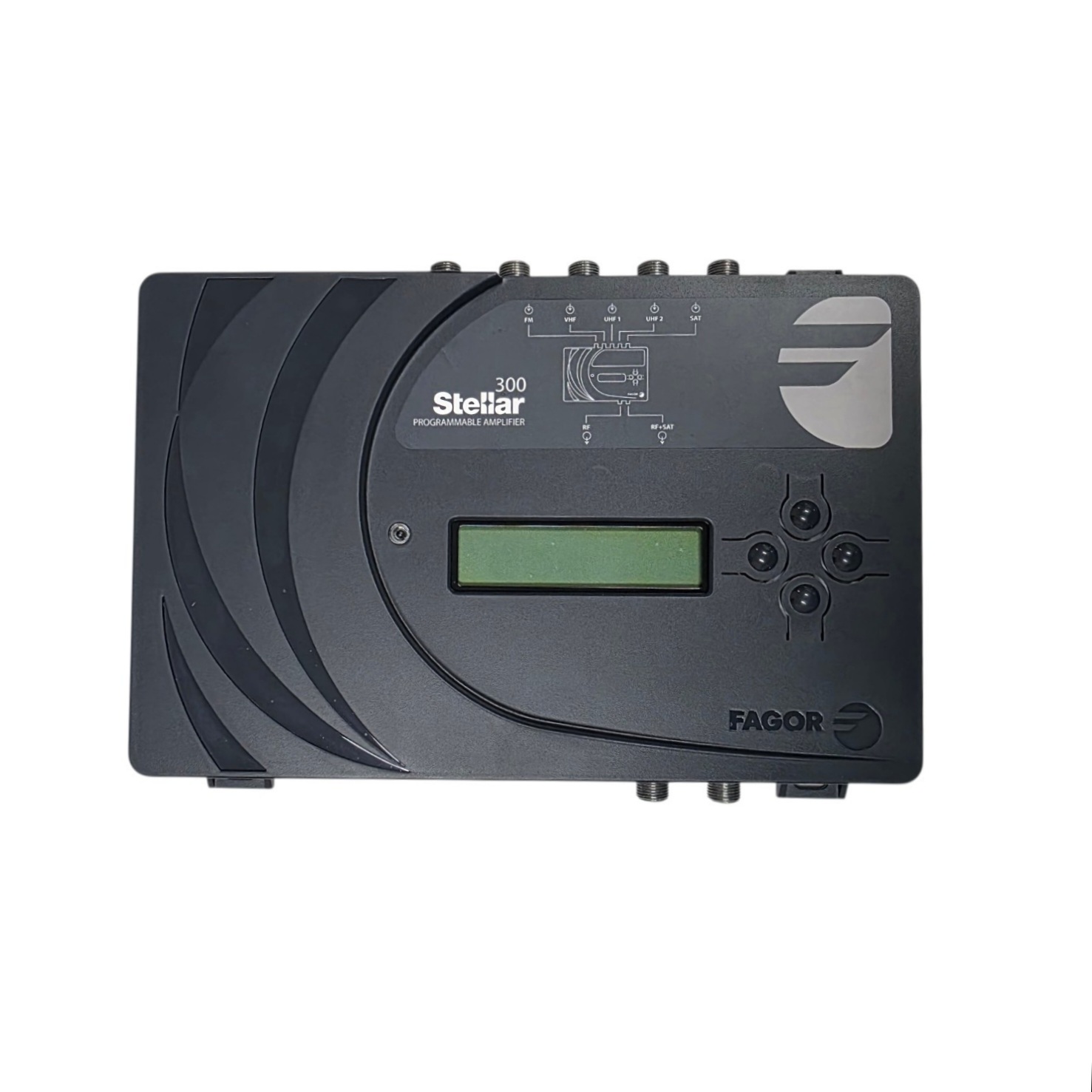

FAGOR Stellar 300 35991 – Programmable Digital TV Headend Amplifier

The Fagor Stellar 300 is a programmable digital TV headend amplifier designed for professional TV distribution systems. It processes, converts and amplifies digital terrestrial signals, with a single satellite polarity input for flexible signal distribution.

With 5 inputs and support for up to 32 VHF and UHF filters, it offers precise channel processing, automatic channel detection and frequency conversion. Its high-selectivity filters help reduce interference from adjacent channels and support LTE 2 (5G) band rejection.

Ideal for professional MATV and SMATV installations in residential, commercial and multi-dwelling buildings.

Key Features

• 5 inputs: 1x FM, 1x VHF, 2x UHF and 1x satellite

• Supports up to 32 VHF and UHF filters

• Programmable channel processing with output frequency conversion

• Automatic channel search and equalisation

• VHF and UHF input signal level indication

• Automatic gain control (AGC) with a wide input range of 40–108 dBµV

• Selectable VHF and UHF pre-feedback

• Selectable internal VHF/UHF pre-amplifier

• High selectivity and adjacent-channel rejection

• LTE 2 (5G) rejection using high-rejection SAW filters

• Test output (-30 dB)

• Keypad programming and high-resolution display

• Improved energy efficiency and faster autoconfiguration

Available downloads for this item:

Click to view - FAGOR Stellar 300 Datasheet

Click to view - FAGOR Stellar 300 User Manual
