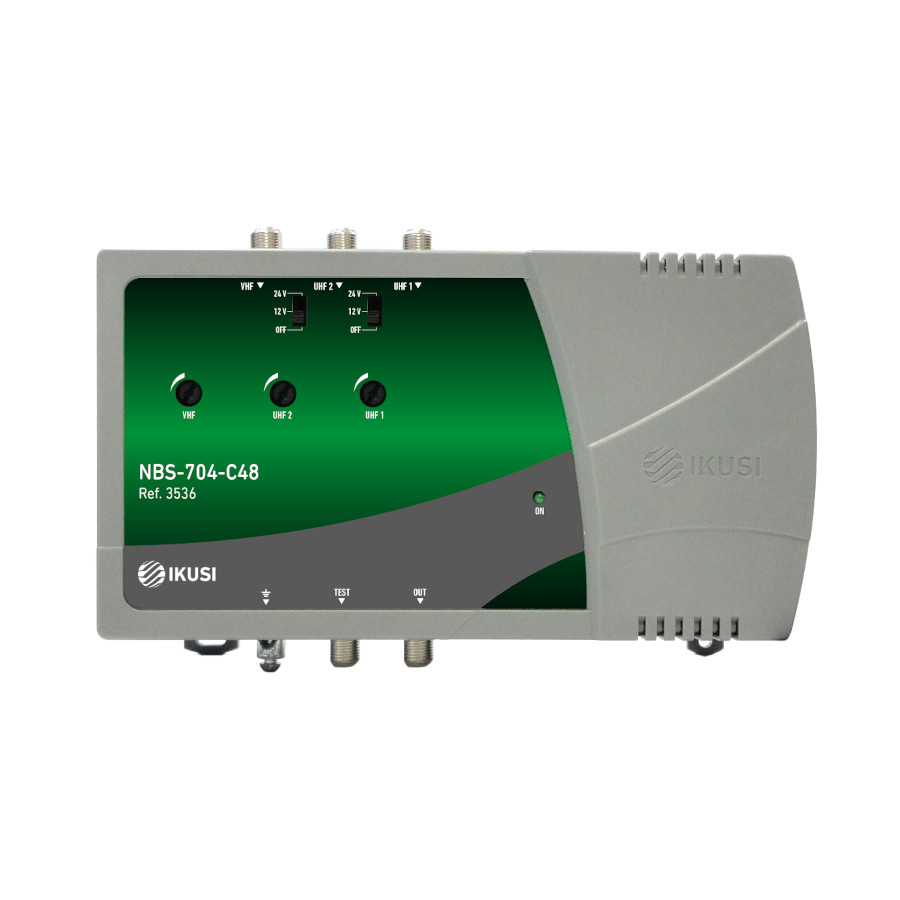

IKUSI by FAGOR 3536 NBS 700 Series: NBS-704-C48 Multi Input BB AMP VHF BIII/DAB – 2xUHF

FAGOR IKUSI LOGO

$187.00 Inc. GST

SKU: NBS-704-C48 Category: Tags: , Brand:
Description

NBS-704-C48 3536: Amplifier 3 Inputs VHF BIII/DAB(88-240MHz G=22dB) – 2xUHF (470-694MHz G=35dB) , Gain Adj 0/15dB “Requires IEC C7 (Figure 8) Power Lead”

NBS-704-C48 is a multiband amplifier for the amplification of signals coming from different terrestrial antennas

  • Mid-power amplification centre for terrestrial signals in small installations
  • UHF inputs with a selectable power supply for mast amplifier: 0, 12 or 24V
  • Interstage input attenuators to improve noise figure
  • Output test for checks without disconnecting the service
Weight 1 kg
Dimensions 21 × 15 × 6 cm

Available downloads for this item:

Click to view - Product DATA Sheet
