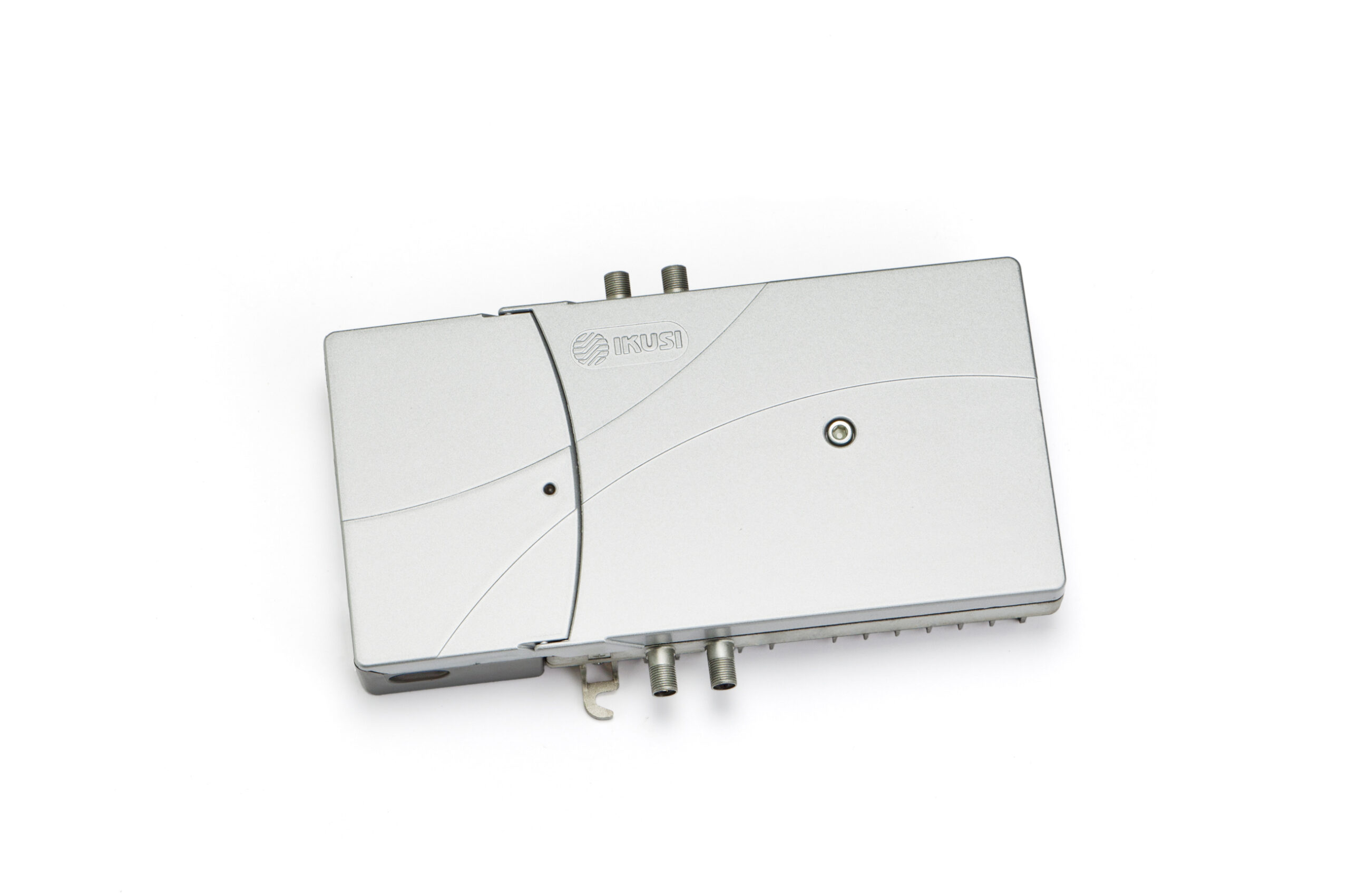

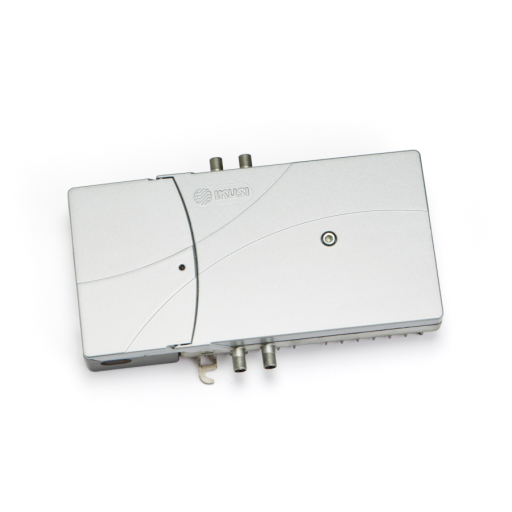

IKUSI by FAGOR 3500 SAE-Series: SAE-912 Line Extender Repeater Amplifier, Single Input SAT(IF) + TER

FAGOR IKUSI LOGO

$508.20 Inc. GST

10 in stock

SKU: SAE-912 Category: Brand:
Description

IKUSI by FAGOR 3500 SAE-912 Line Extender, 1 Input TV+IF(45-862+950-2150MHz) GAIN=35dB Output Level 120dBµV “Requires IEC C7 (Figure 8) Power Lead”

System Amplifier Repeater / Extension for Terrestrial + Single Satellite

  • 1 Input: 1 (TV+IF-1)
  • 1 Outputs: 1 (TV+IF-1)
  • Forward Gain: 35dB,
  • Gain Adjustment: 0-18dB
  • Slope Control Adjustment: 0-182dB
  • Output level 118dB
  • Output Test Point: -30dB
  • Mo LNB Powering Function
  • Mains Powered (Fig-8)
Weight 1.5 kg
Dimensions 26 × 16 × 6 cm

Available downloads for this item:

Click to view - Product DATA Sheet

Click to view - Installation guide SAE
