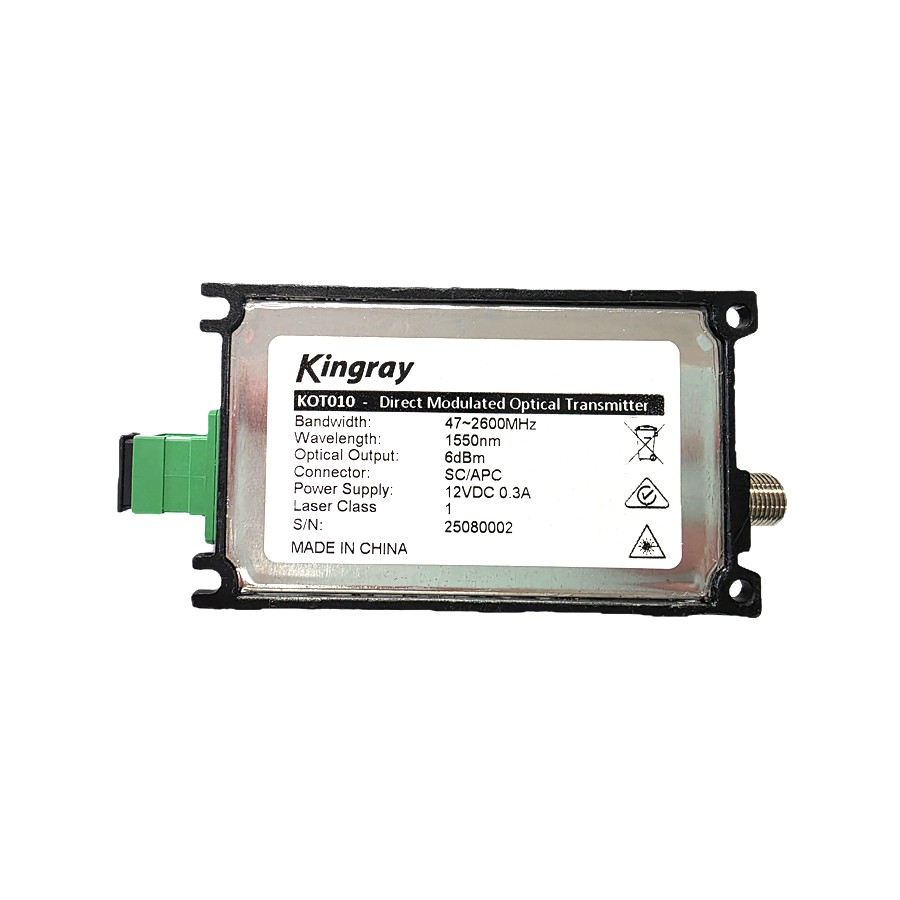

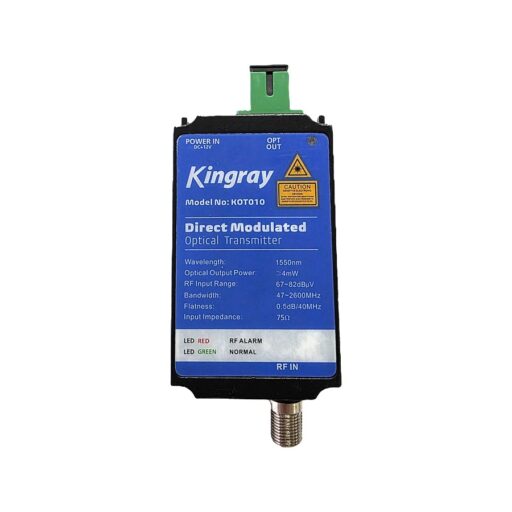

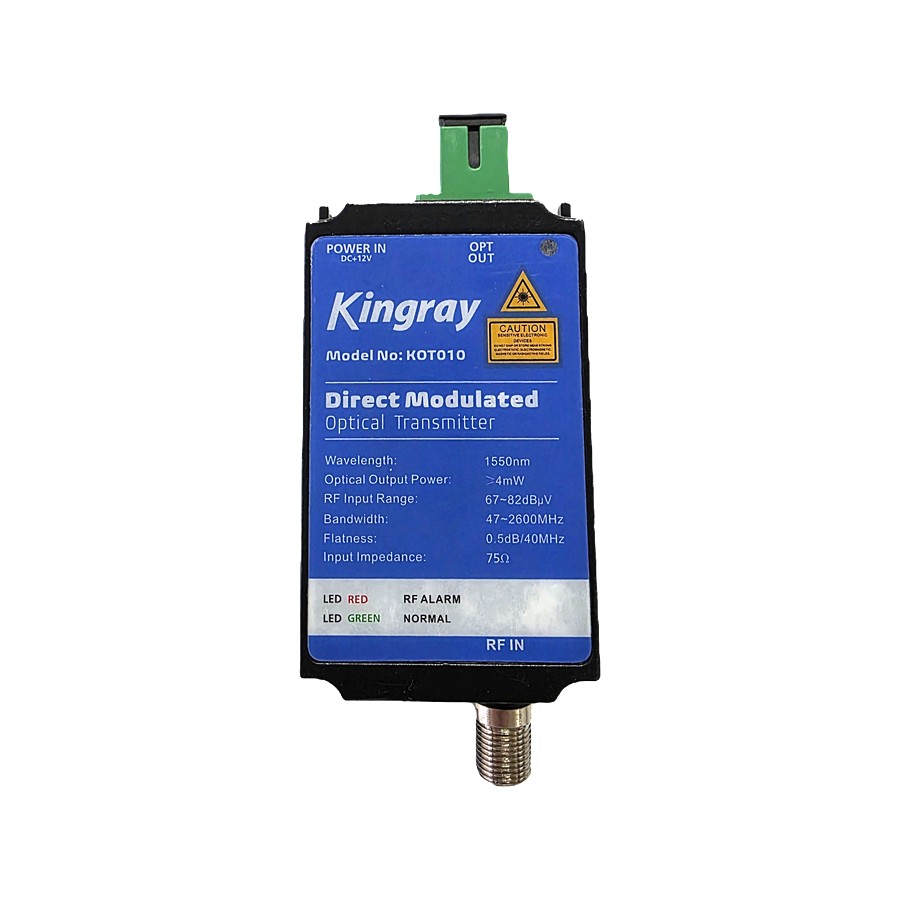

Kingray KOT010 Optical Laser Transmitter 47-2600MHz, 1550nm 4mW/ 6dBm Desk/ Wall/ Shelf Mounting

Kingray Logo

$1,072.50 Inc. GST

SKU: OP-KOT010 Category: Brand:
Description

The KOT010 optical transmitter has an input range of 47~2600MHz and is specifically designed for the transmission of Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S) signals. This transmitter is Foxtel approved & is ideal for use as a point-to-point distribution device for digitals TV signals.

The optical receiver is powered by a Kingray PSK12S power supply (sold separately). Foxtel Approved.

Feature:

  • Frequency Range 47-2600MHz
  • Optical Output Power: 4mW/6dBm
  • RF Input Power Range: 67~82dB
  • Suitable for Digital TV and Satellite TV Application
  • One fibre can transmit Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S)
  • Size: Compact, Desktop & Wall Mountable (50×88×22mm)
  • Optical Connector: SC/APC
  • RF Connector: F-Female
  • Requires 12VDC 500mA Power Supply GK-PSK12S

FOXTEL STACKER
Approved

F31150

Weight .25 kg
Dimensions 13 × 7 × 4 cm

Available downloads for this item:

Click to view - Product Installation Sheet
