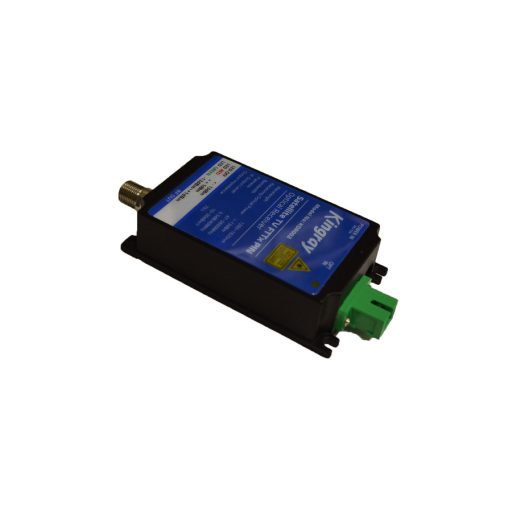

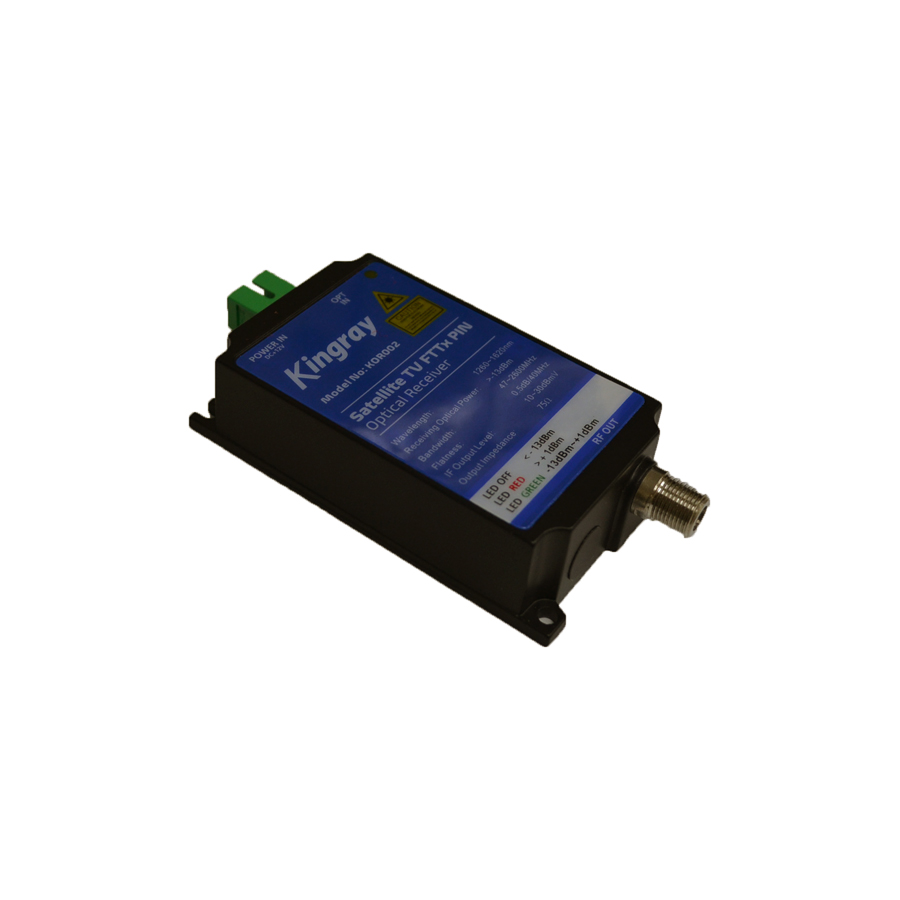

Kingray KOR002 Optical Fibre Receiver 1260~ 1620nm, 47~2400MHz, +1~-13dBm, SC/APC, F-type Output

Kingray Logo

$124.30 Inc. GST

SKU: OP-KOR002 Category: Tags: , Brand:
Description

The Kingray KOR002 Optical Receiver uses a high-sensitivity PIN detector. It can receive digital signal (DVB-C, DVB-T), as well as satellite TV (DVB-S) within the frequency range of 47~2600MHz on a single fibre.

Requires PSK12S 12VDC/500mA Power Supply

Key Features

  • Frequency Range 47~2600 MHz
  • Input Wavelength 1260~1620nm
  • Receiving Sensitivity Range: -13dBm to +1dBm
  • RF Output Level: Typically 70~90dB
  • High linearity, suitable for Digital TV and SAT-IF application
  • Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S) signal can be received via a single fibre at the same time
  • LED Indicator
  • Compact in design, wall mountable and light weight
  • Optical Connector: SC/APC
  • RF Connector: F-Female

FOXTEL STACKER
Approved

F31076

Weight .25 kg
Dimensions 14 × 8 × 9 cm

Available downloads for this item:

Click to view - Product DATA Sheet
