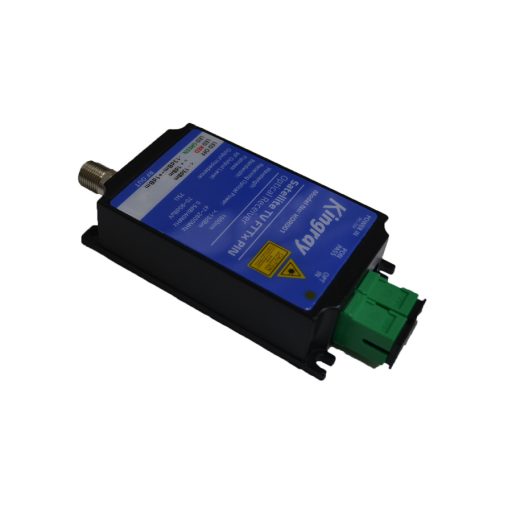

Kingray KOR100 (KOR001) Optical Fibre Receiver 1550nm, +1~-13dBm with EPON, GPON, XGPON Pass, F-type Out

Kingray Logo

$137.50 Inc. GST

SKU: OP-KOR100 Category: Brand:
Description

The Kingray KOR100 (KOR001) now updated by KOR100 Optical Receiver uses a high-sensitivity PIN detector. It can receive digital signals within the frequency range of 47~2600MHz on a single fibre and is compatible with any FTTx PON system to achieve a triple-network combination between Digital TV (DVB-C, DVB-T), Satellite TV (DVB-S) and DATA.

It has a built-in WDM to separate wavelengths of 1550nm (CATV) and 1310/1490nm (data).

Requires PSK12S 12VDC/500mA Power Supply

Key Features

  • Frequency Range 47~2600 MHz
  • Built-in WDM to separate wavelengths of 1550nm (CATV) and 1310/1490nm (data)
  • Receiving Sensitivity Range: -13dBm to +1dBm
  • RF Output Level: AGC
  • High linearity, suitable for Digital TV and SAT-IF application Digital TV (DVB-C, DVB-T) and Satellite TV (DVB-S) signal can be received via a single fibre at the same time
  • LED Indicator
  • Compact in design, wall mountable and light weight
  • Optical Connector: SC/APC
  • RF Connector: F-Female

FOXTEL STACKER
Approved

F31054

Weight .25 kg
Dimensions 13 × 7 × 4 cm

Available downloads for this item:

Click to view - Product DATA Sheet
