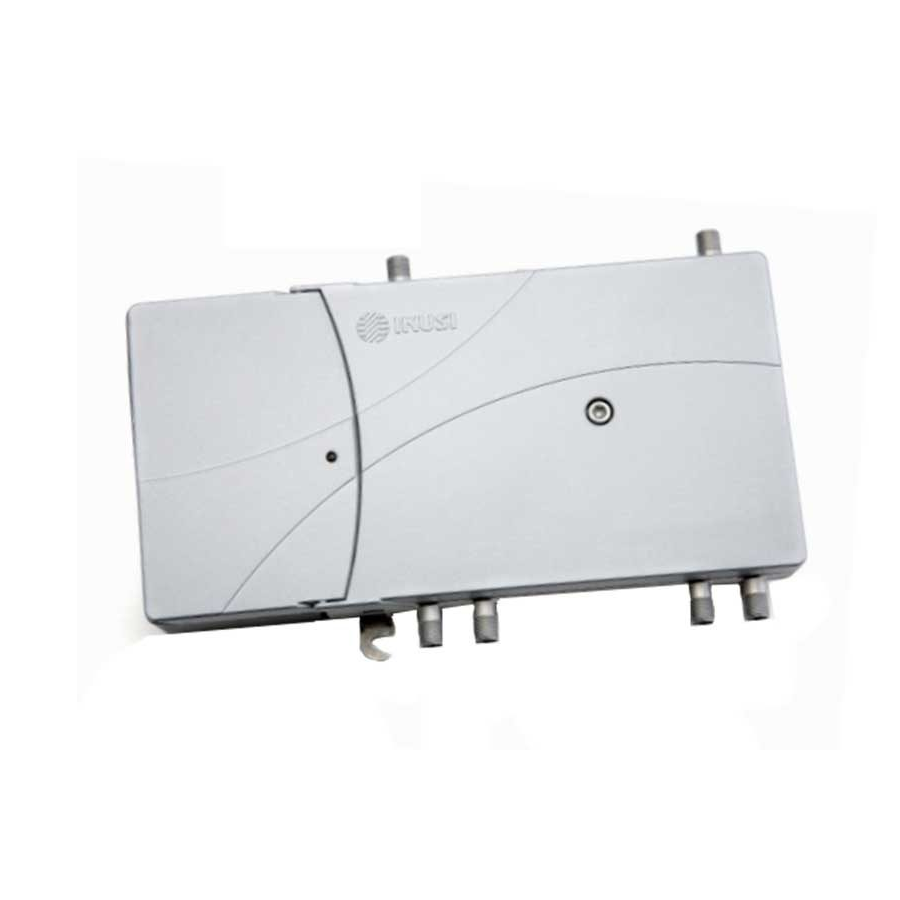

IKUSI by FAGOR 3263 1-Wire TAE-1118 Repeater/Line Extender Amplifier Active Return Path

FAGOR IKUSI LOGO

$531.30 Inc. GST

SKU: TAE-1118 Category: Tag: Brand:
Description

IKUSI by FAGOR 3263: TAE-1118 Repeater/Line Extender Amplifier Active Return Path: G-35dB/120dBµV (RW 5-66Mhz G-12dB)

  • Push-pull technology (TAE1118)
  • Powering mode: Mains Figure 8
  • Bandwidth-Forward Path: 86 – 862MHz
  • Bandwidth-Reverse Path: 5 – 66MHz
  • Forward Gain: 35dB
  • Input Variable Attenuation: 0-18dB
  • Slope Control Range: 0-18dB
  • Output level (-60dB, DIN 45004B): 110dB
  • Output Test Point: -30dB
  • Reverse Gain: 12dB
  • Mains Powered (Fig-8)



  • TAE series, ideal for hotels and dense multiple dwelling units.
  • 862 MHz amplifiers with active return path on all models.
  • Attenuation and equalization adjustments of TV signals by potentiometer. Selection of return signal attenuation by the insertion of small plug-in links provided.
  • Forward and reverse output test.
  • Zamak housing with protective cover for the adjustment controls. Wall fixing. Indoor mounting. Grounding terminal.

IKUSI 3263 TAE-1118

Weight 1.8 kg
Dimensions 24 × 15 × 9 cm

Available downloads for this item:

Click to view - Product Data Sheet

Click to view - Installation Guide
