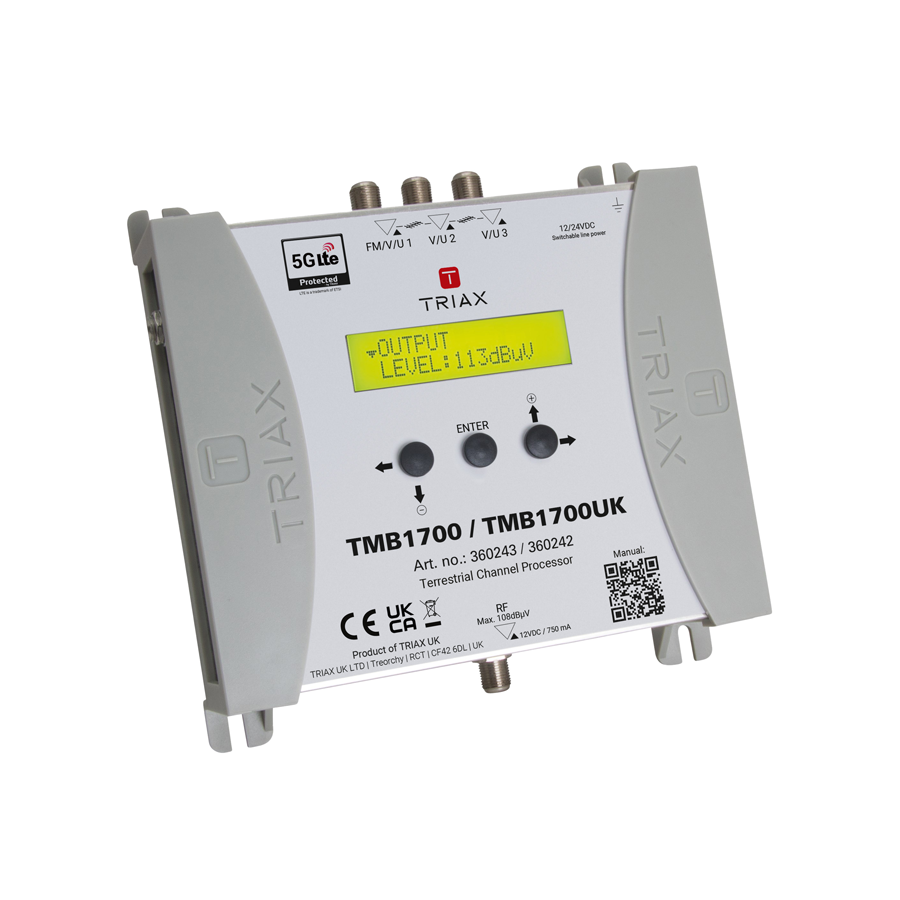

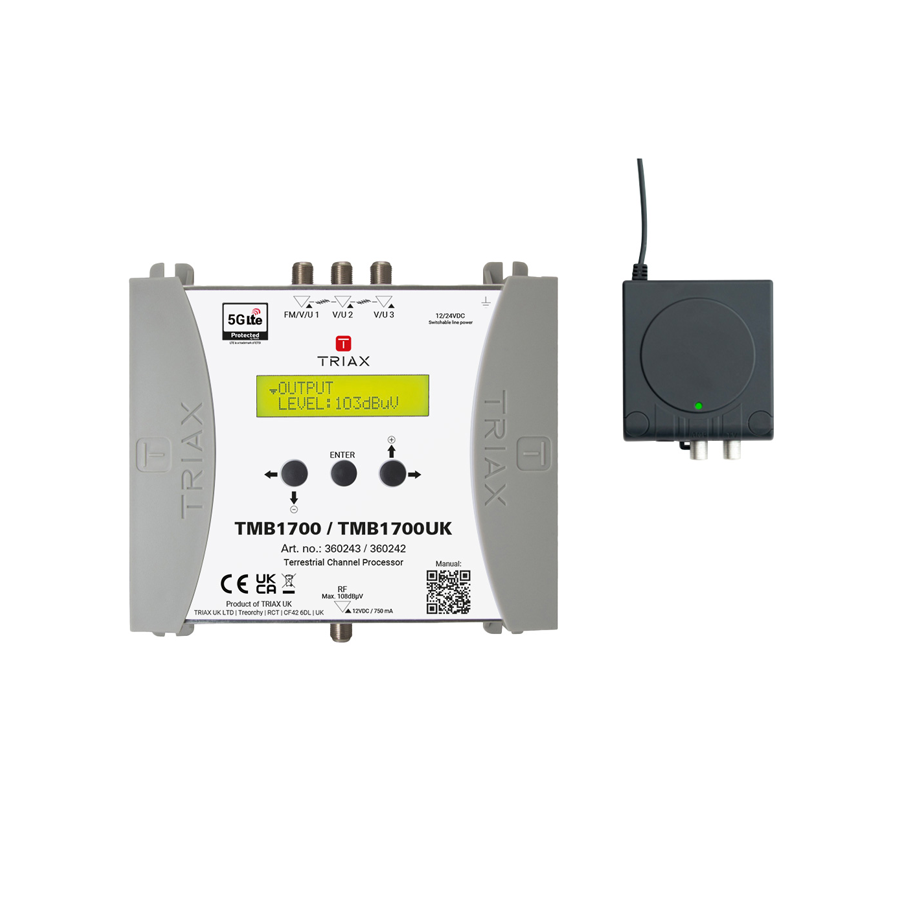

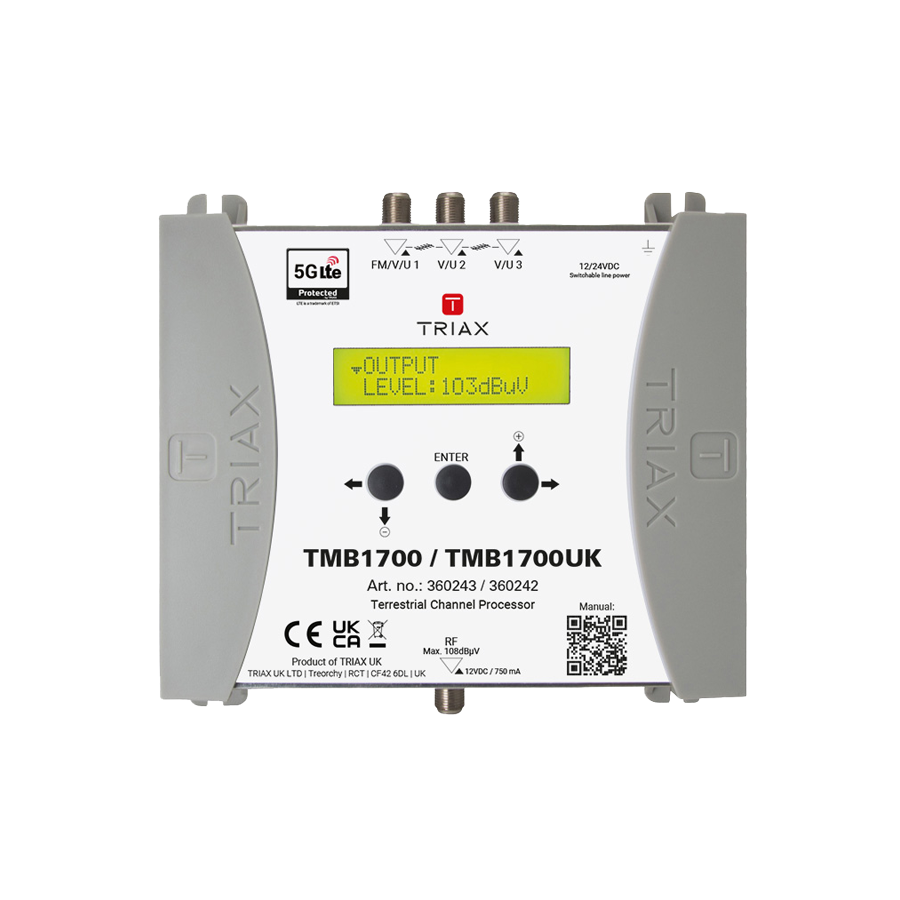

Triax 360242 TMB 1700 Programmable Channel Filtering, Band Shifting FTA Mini Processing Headend

The TRIAX TMB 1700 is an easy to use programmable filter amplifier and convertor for terrestrial signals.
The module optimises terrestrial FM/VHF/UHF signals from multiple inputs.

• Smart & Automatic CHANNEL SCAN
• Can process and convert more than 50 channels (consisting out of 32 filters, each up to 6 MUXes wide)
• Can process S-Band output channels
• 5G LTE Protection (694MHz)
• Sharpest filters on the market (50 dB on adjacent channels)
• Real-time AGC on all individual multiplexes
• Complete flexibility in assigning filters from any input. Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix)
• To avoid unauthorised persons changing the settings, the TMB 1700 can be locked with a security code
• Made in Europe, for worldwide application
• 1 FM/VHF/UHF & 2 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
• 3 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
• Powered via output F-connector
• Product dimensions (H X W X D): 165mm x 190mm x 59mm
