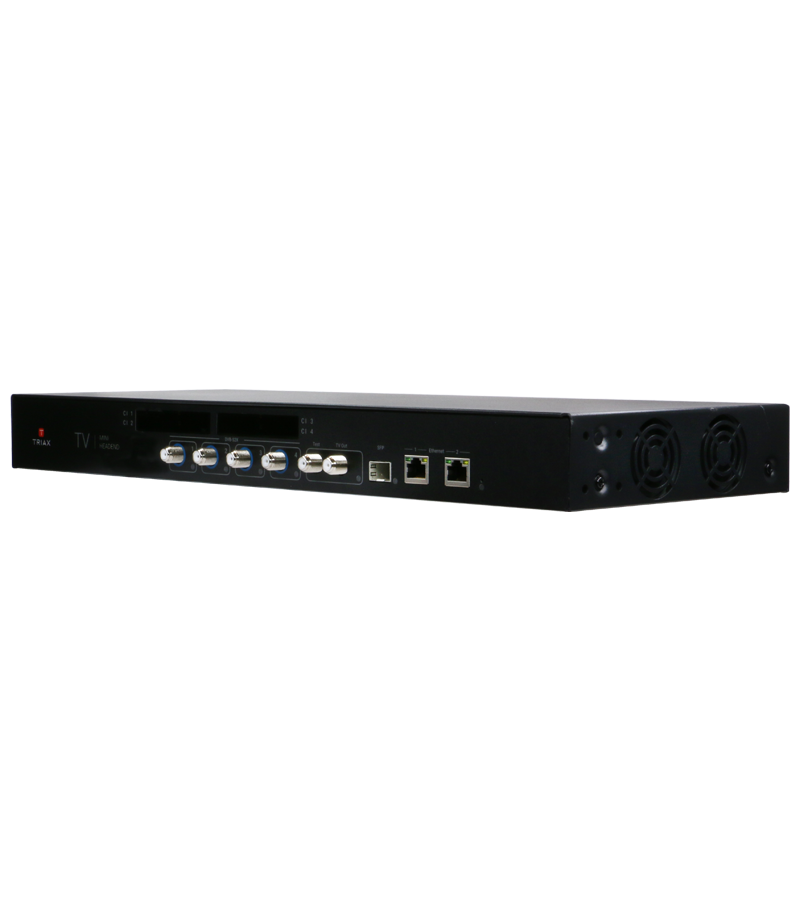

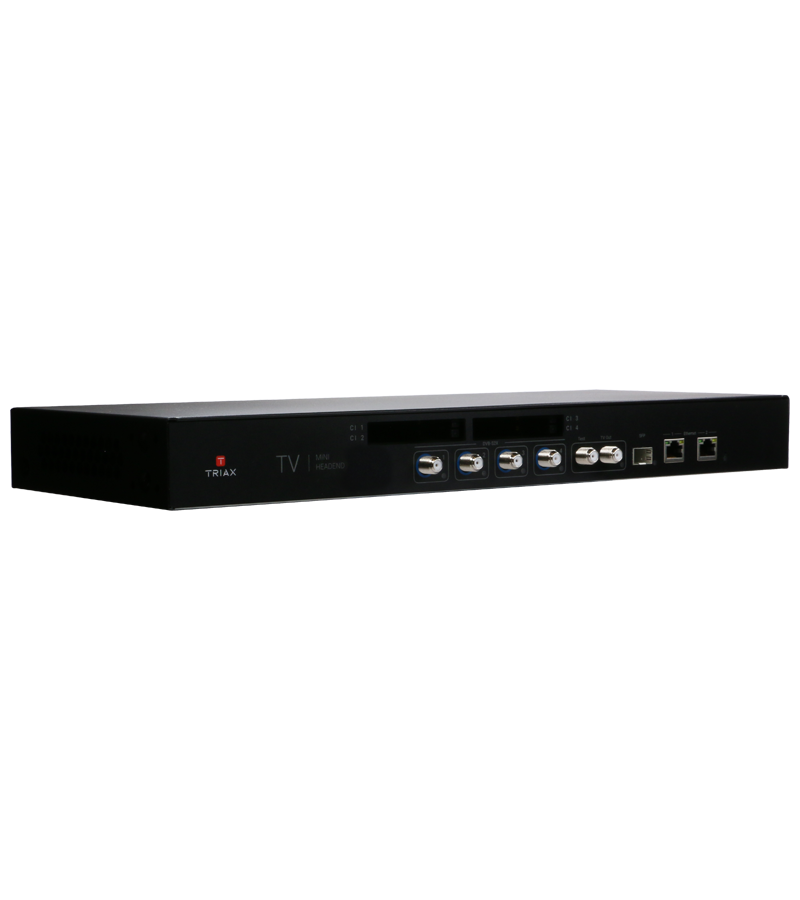

The Triax TDmH 8S-I/ProI (492775) MINI Series Professional TV Headend with Pro:Idiom for LG is a versatile platform designed for professional TV signal reception and distribution. It supports Freeview via VAST (Viewer Access Satellite Television) Remote FTA Satellite Service and FOXTEL. The unit can decrypt subscription services using CAM modules and smart cards via integrated CI slots, and can simultaneously output content as DVB-T COFDM digital terrestrial signals and Multicast IPTV streams (UDP / RTP). This makes it an ideal solution for hotels, motels, aged care facilities, apartment complexes, and other multi-dwelling or commercial television distribution environments.
Key Features:
- Receives Freeview, FTA satellite, FOXTEL, and VAST services
- CI slots for CAM and smart card-based service decryption
- DVB-T COFDM RF output
- Simultaneous Multicast IPTV output (UDP/RTP)
- Equipped with Pro:Idiom for LG Panel
- Professional headend solution for MATV and SMATV networks
- Compact MINI Series modular design
A great solution for VAST and FOXTEL offering out on DVB-T UHF or upgradeable to include Multicast IPTV UDP/RTP. Include extra services delivered by HDMI
Features – Triax TDmH 8S-I/ProI (492775)
- 8 × DVB-S/DVB-S2 Satellite Transponder Inputs
- 4 × Common Interface (CI) Slots for CAM modules and smart cards
- 8 × DVB-T COFDM UHF Adjacent Channel Outputs
- Equipped with Pro:Idiom for LG Panel

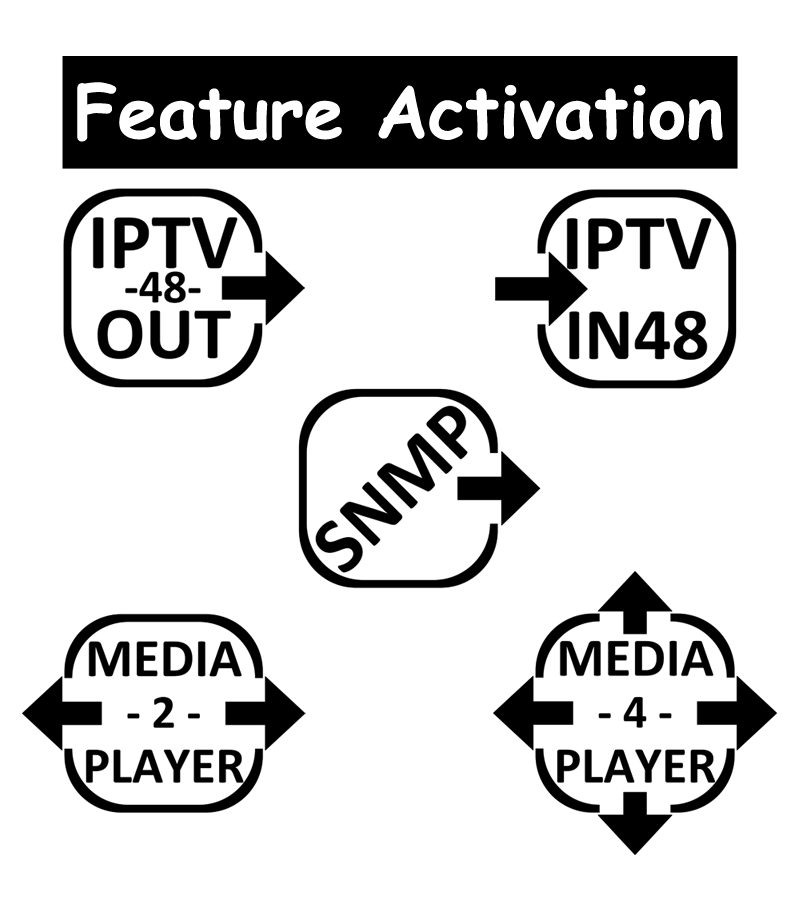

- Upgradeable License Option for simultaneous Multicast IPTV OUTPUT, supporting up to 48 SPTS (Single Program Transport Stream) UDP/RTP streams
- Upgradeable License Option for Multicast IPTV INPUT conversion to DVB-T COFDM output, supporting up to 48 SPTS and MPTS (Multiple Program Transport Stream) UDP/RTP streams
- Upgradeable License Option for SNMP network monitoring and management
- Channel Multiplexing capabilities for both RF and IP outputs
Applications
The TDmH 8S-I/ProI 492776 is ideal for:
- Hotels and resorts
- Motels and caravan parks
- Aged care facilities
- Hospitals and healthcare facilities
- Apartment buildings and MDUs
- Clubs and commercial venues
- Educational campuses
Summary
The Triax TDmH 8S-I/ProI 492775 MINI Series Professional TV Headend combines satellite reception, CI-based decryption, DVB-T modulation for MATV and SMATV, IPTV streaming, and channel multiplexing in a compact, scalable platform. With support for Freeview VAST and FOXTEL and Equipped with Pro:Idiom for LG Panels it provides a powerful solution for professional RF and IPTV distribution networks.
| Weight | 6 kg |
|---|---|
| Dimensions | 51 × 28 × 15 cm |
Available downloads for this item:
Click to view - TRIAX TDcH & TDmH Headend User Manual
Click to view - TRIAX – Proud Heritage Brochure
Click DOWNLOAD LINK - TRIAX Products - Latest Firmware
