TRIAX 323170 GPV950 CATV Distribution Amplifier, 85~1006MHz, G41/33dB, Return Path, Mains Pwd

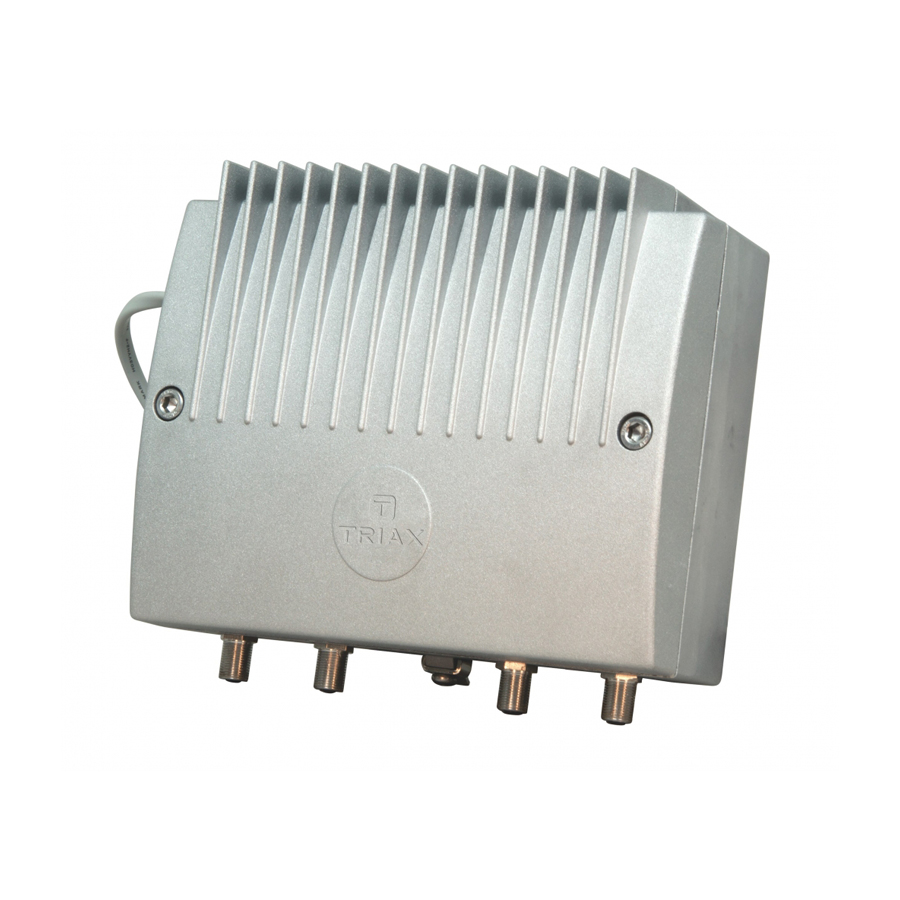

Triax GPV 950 (323170) High Output CATV Distribution Amplifier is mains powered with active return path and forward gain 41/33dB

GPV 950 are high output Distribution Amplifiers for use in CATV distribution networks in multi-dwelling premises primarily. Switching of the basic gains enables to configure the amplifiers as line extender or as cascade amplifier in trunk position. All functional parts and setting elements are implemented on the printed board. Thus you do not need external accessories for configuration and operation of the amplifier in generally. That basic type is mains fed via Euro-plug.

All features at glance

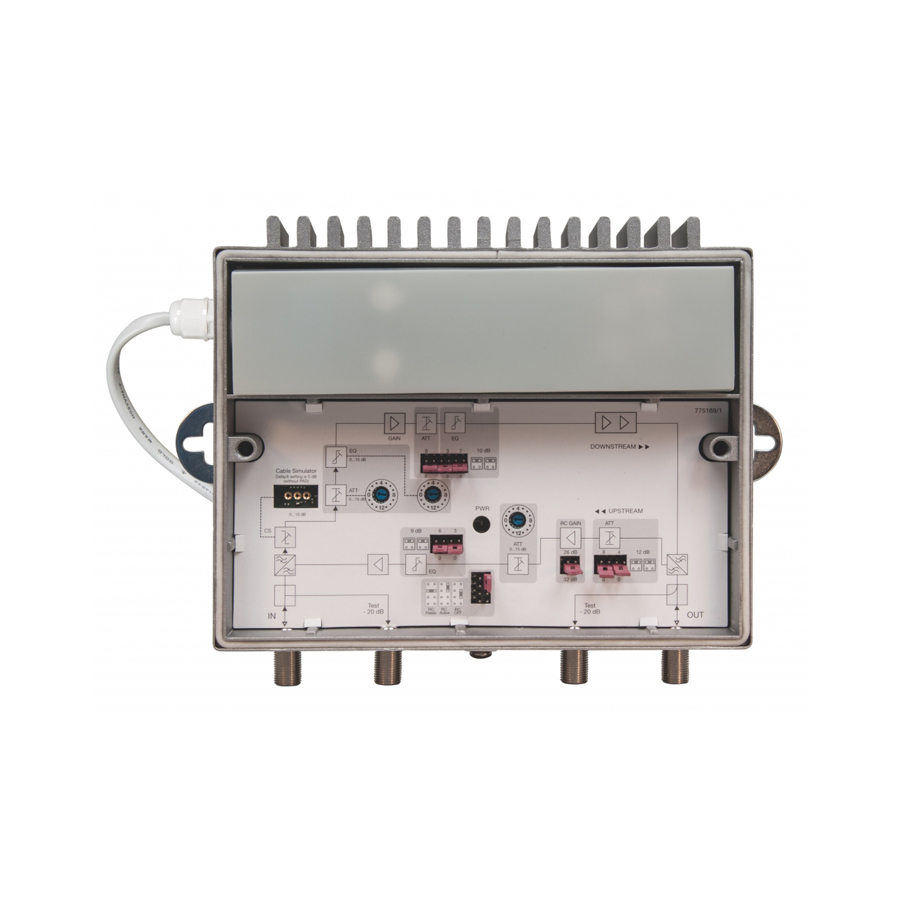

• One-board technology: all functionalities on one board implemented

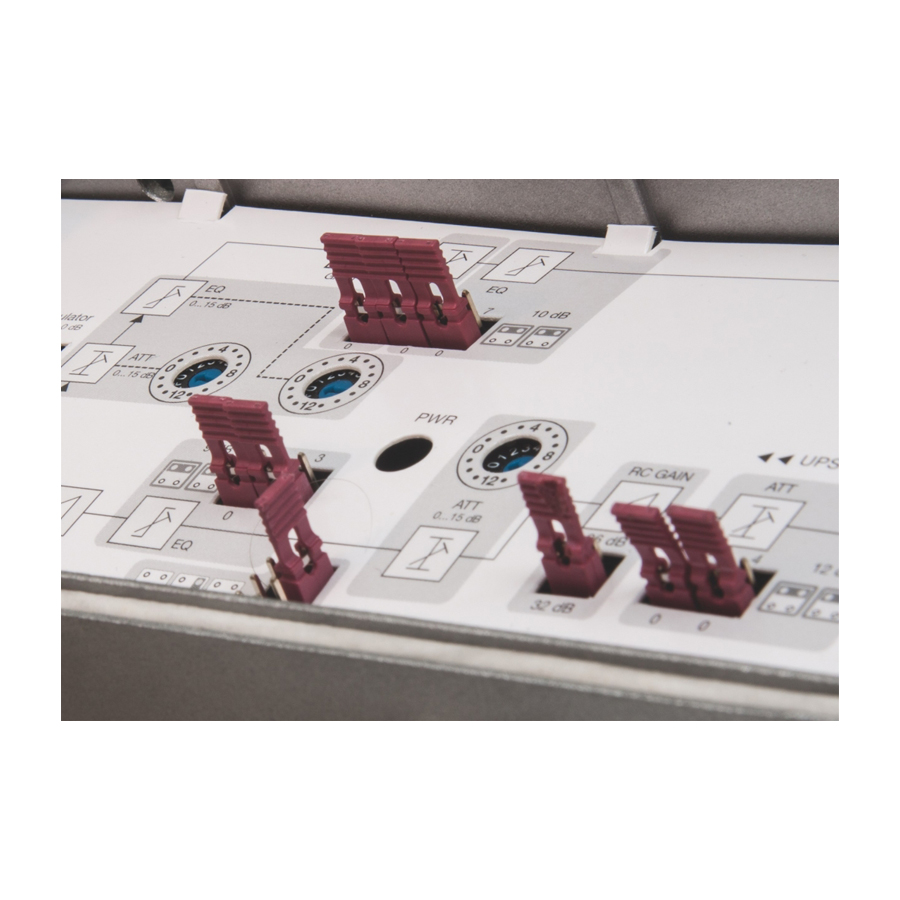

• Rotary switches in 1 dB steps for settings of attenuation and equalization
• Downstream: 85…1006 MHz by max. output level 113 dBμV
• Upstream: 5-65 MHz, max. output 120 dBμV (high load performance for DOCSIS 3.x, KDG-Class D)
• Basic gain selectable via jumpers
• Return path mode selectable: active / passive / off
• Integrated cablesimulator
• State of the art 1 GHz technology
• Excellent and stable amplifier characteristics
• Low power consumption because of high efficient switching PSUs
• Extensive ESD and surge protection
