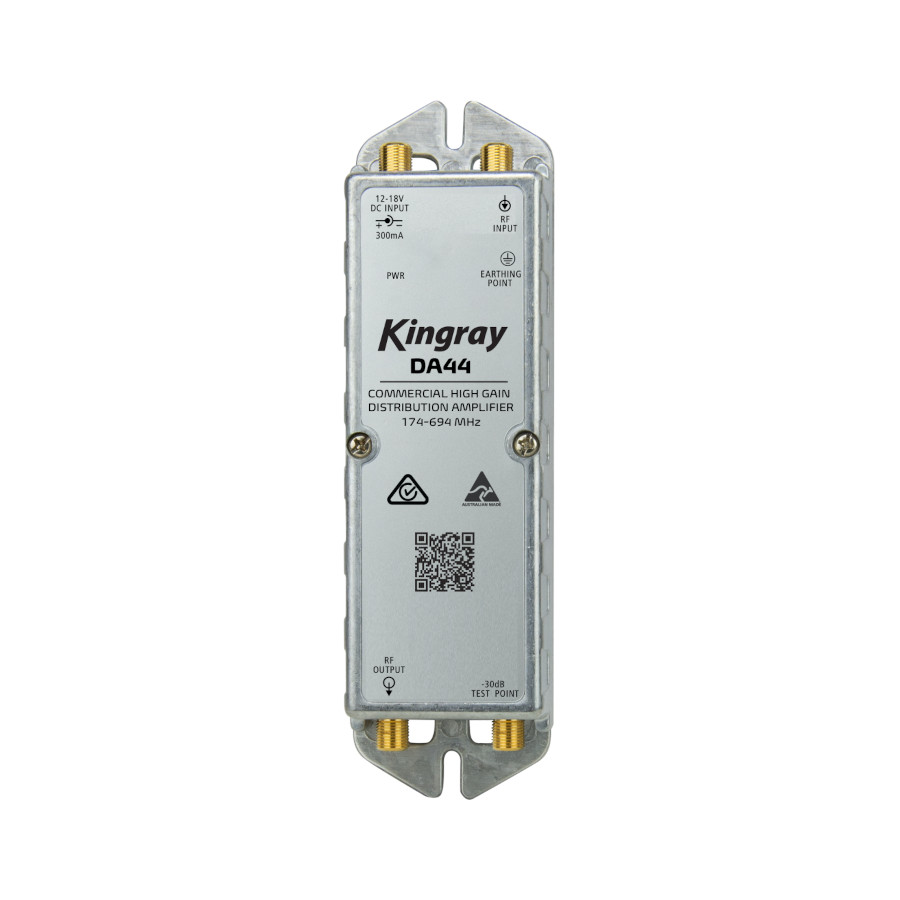

Kingray DA44 Distribution Amplifier – Single Input, 174~694MHz 44dB Gain, local or remotely powered
$330.00 Inc. GST
Kingray Distribution Amplifier – Single Input, 174~694MHz 44dB Gain, local or remotely powered (F31216) (Req PSK18M (18VDC 1.0A F-type PSU)
Kingray’s DA44 distribution amplifier has been designed for today’s digital television signals. The technology used is hybrid bipolar and GaAs technology, which allows for a greater output capacity, whilst having a lower noise figure. The amplifier contain mid-stage gain controls, a number of flexible powering options and are built in a fully shielded die-cast housing. The DA44 distribution amplifier has a single RF input, single RF output & a test port. Power supplied sold separately.
Product Details
Key Features
- Frequency Range 174~694 MHz (Channels 6 to 51)
- 44dB Maximum Gain
- 10dB Mid-Stage Gain Control
- Single RF Input
- Local or Remote Powering Options
- F-Type Connector for Power Input
- Adjustable Slope Control of 0dB to 10dB
- -30dB Test Point
- Ability to send power out via the RF Input
- High Output Figure: 118dB IMR3 (DIN45004B)
- Connectors: F-Type
- Power Consumption: 300mA
- Operating Voltage: 18V DC
- Operating Temperature: -10ºC to 50ºC
- Suitable Power Supply: PSK18M or PSK182F
In the box
- DA44 Amplifier
- Instruction Manual
- Mounting Screws
| Weight | 0.5 kg |
|---|---|
| Dimensions | 20 × 6 × 4 cm |
