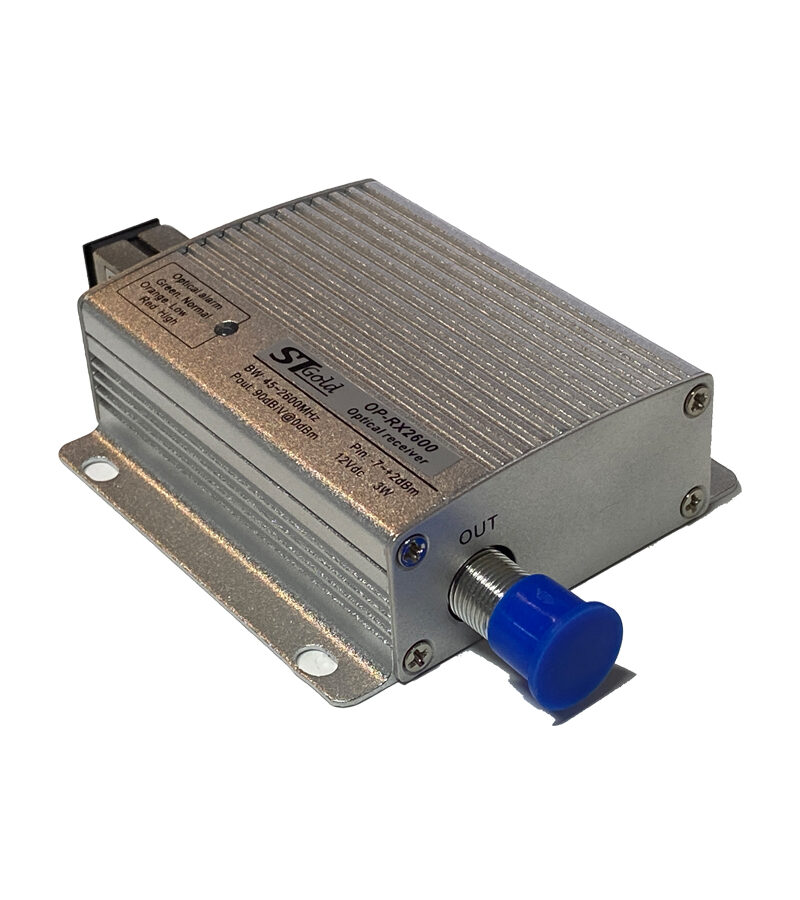

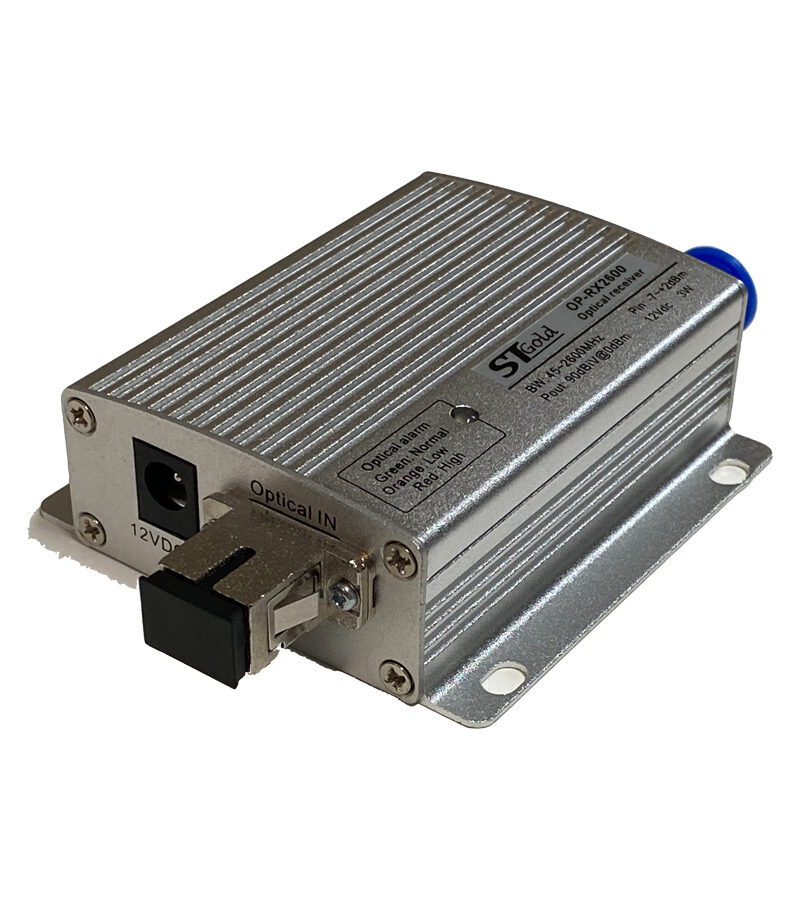

STGold OP-RX2600 Optical Receiver: 45~2600MHZ, 1260~1620nm, +2~-14dBm, RF Out 90dB@0dBm, SC/APC

STGold OP-RX2600 Optical Receiver for Terrestrial and Satellite, Input 1260~1620nm, Input Light Power +2 ~ -14dBm, Out 90dB @ 0dBm, SC/APC, Requires 12VDC 0.5A Power Supply

OP-RX2600 Is the specialty product developed for the CATV and satellite direct TV transmission in one network. With small shell, compact and reasonable internal circuit structure and excellent performance, is compatible with FTTxPON technology.  Realize FTTH and the integration of Analog TV, Digital TV (DBS-C, DBS-T) and Satellite TV (DVB-S/S2).

Features

• High linearity, suitable for TV&SAT-IF
• Bandwidth: 45~2600MHZ.
• Simultaneously receive CATV and SAT-IF signal, can be compatible with FTTxPON
• Digital TV and Satellite TV have excellent performance:
• Digital TV: (Original signal MER=38.6dB, BER<1.0E-9) Pin=-14dBm, MER≥33dB (MER degrade 5dB), Pin=-19dBm， BER<1.0E-9；
• Satellite TV: (Original signal quality =64%) Pin=-20dBm, signal quality >38%.
• Requires Power Supply
