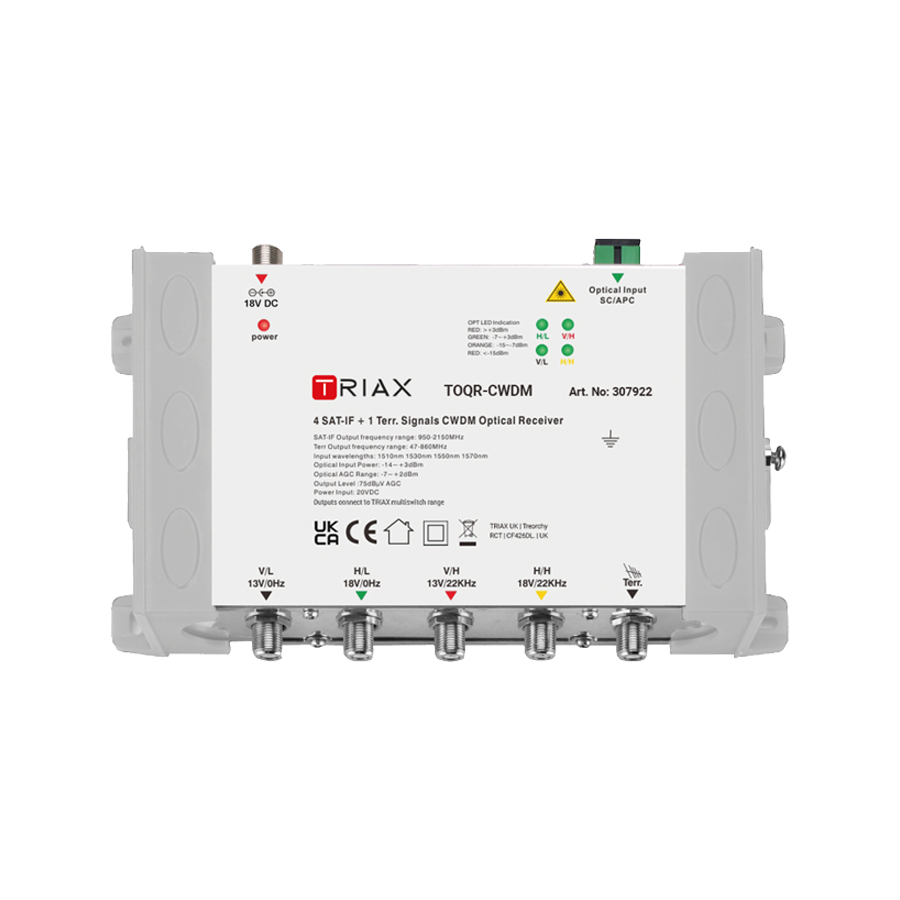

TRIAX 307922 TOQR-CWDM Optical Receiver, Single OS1 via SC/APC to 4x SAT + 1x Terr F-type OUT

Triax 307922 TOQR-CWDM Optical Quattro Receiver, Single OS1 via SC/APC (Range +2~-7 AGC)to 4x SAT + 1x Terr F-type Output. Requires 18VDC 1.2A F-type PSU (PS-18VDC1600/F)

• Single OS1 Optical OUT via SC/APC
• 4 SAT Polarities plus a Terrestrial INPUT
• Wide operating frequency range:47-860MHz / 950-2150MHz
• Built-in CWDM, Using DFB coaxial small package laser
• Built-in GaAs amplifiers
• Ultra low noise technology
• Built-in optical AGC function
• LED for power & optical level indication
• Compact design for easier installation
